Outside Micrometer For General Purpose Precision Measurement With 3 To 4 Inch Range And Vernier 0.0001 Inch Graduations With 0.0001 Inch Accuracy Flat Anvil And Spindle Hardened Carbide Tips

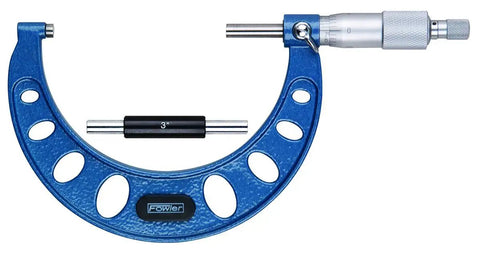

Precision outside micrometer, 3-4 inch range, single unit
✔️ 3-4 in range, 0.0001 in vernier, carbide flat anvil

A general-purpose outside micrometer designed for precise measurement of external features. It’s used in machining, fabrication, and inspection to verify diameters and thicknesses.

✅ Range: 3-4 in (76.2-101.6 mm)
✅ Graduation: 0.0001 in (0.00254 mm)
✅ Accuracy: 0.0001 in (0.00254 mm)
✅ Anvil/Spindle: flat, 0.256 in (6.50 mm) diameter
✅ Faces: hardened, precision-ground, carbide-tipped, micro-lapped
✅ Flatness: 0.0003 in (0.00762 mm)
✅ Thimble: friction or ratchet-stop for constant force

💡 What is a handy tool for precise outside measurements in metalworking?

- Micrometers are handheld tools that measure outside dimensions with a calibrated screw and vernier scale.
- They deliver high-precision readings to 0.0001 inch, critical for tight tolerances.
- Use constant force with a friction or ratchet-stop thimble for repeatable results.
- For mixed inch and metric specs, note both units to avoid misreadings.
