One Set GY-NEO6MV2 NEO-6M GPS Module with Large Antenna for Arduino Raspberry Pi ESP32 and Flight Control Projects, 3V-5V Power, 4Pin VCC GND TX RX, Reserved Reset, High Sensitivity GPS Receiver for DIY Drones and Makers

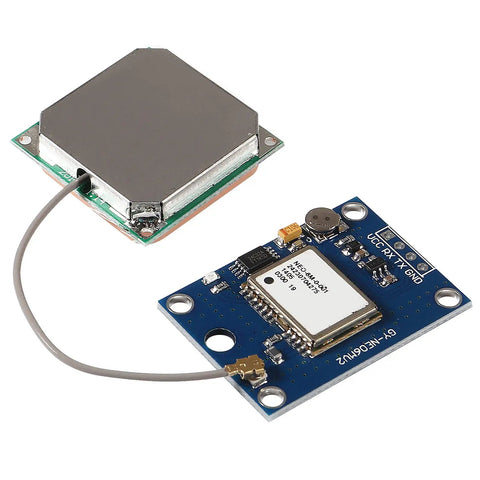

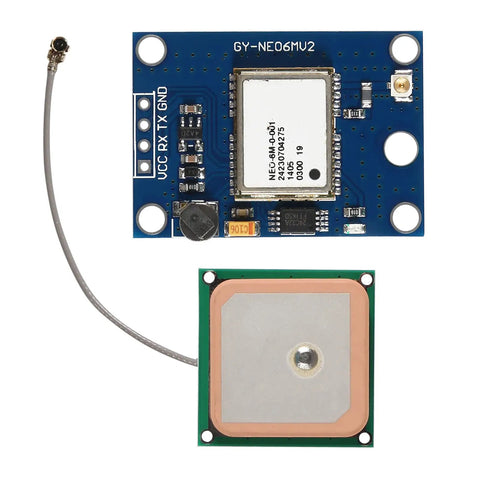

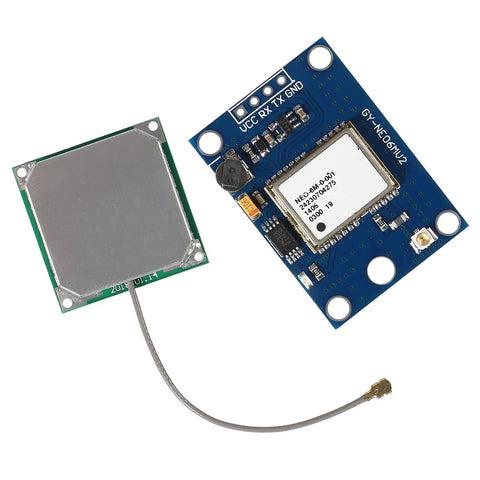

High-sensitivity NEO-6M GPS module with ceramic antenna
✔️ 3V-5V supply, 4-pin interface VCC GND TX RX, LED indicator

This compact GPS receiver module based on the NEO-6M chip is ideal for DIY drones, Arduino, Raspberry Pi, ESP32 projects, and flight controllers. It features a ceramic antenna for strong signal, supports 3V-5V power, a 4-pin VCC/GND/TX/RX interface, an LED indicator, and a data backup battery to retain configurations.

✅ 3V-5V universal power supply; current 67mA (active), 11mA standby, 1mA sleep

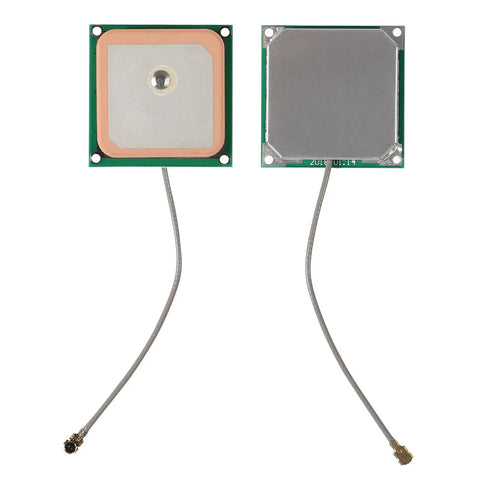

✅ Ceramic edge antenna for strong signal

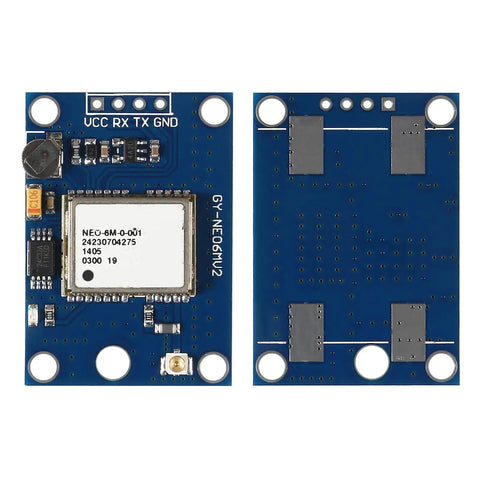

✅ 4-pin interface: VCC, GND, TX, RX; reserved reset pin
✅ Default baud rate 9600; 4800-115200 baud range; AT/UBX control
✅ TTL UART/RS232 compatibility; 3.3V/5V dual logic
✅ Data backup battery and LED indicator included
✅ Dimensions: antenna 25x25mm, module 25x35mm; mounting hole 3mm
✅ Package: 1PCS; ideal for Arduino, Raspberry Pi, ESP32, UAVs and drones

💡 What is a GPS module used for in hobby electronics and drones?

A GPS module delivers location, velocity, and time data to enable navigation, logging, and geotagging across drones and maker projects. - real-time positioning for flight control and mapping
- easy integration with 3V-5V microcontrollers via UART-TTL
- supports UBX and AT command modes for flexible control
✝️
