One Quarter Inch Male JIC 37 Degree Flare To One Quarter Inch Male SAE ORB O Ring Boss 90 Degree Hydraulic Elbow Adapter 6801-04-04 Pack Of 2 Meets SAE J514 JIC And SAE J1926 ORB Standards For Reliable Connection
✔️ JIC 37° flare to ORB seal, SAE J514/J1926 compliant

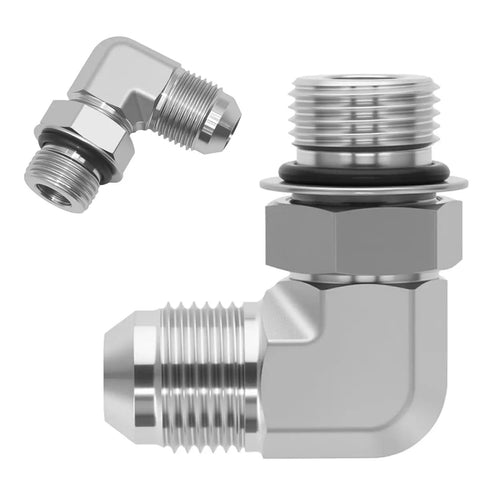

This 1/4 inch JIC to 1/4 inch ORB hydraulic elbow adapter provides a 90-degree connection from a JIC 37° flare male to a straight ORB male port. It is used to route hydraulic lines in tight spaces on valves, cylinders, pumps, and manifolds in agricultural, construction, and industrial equipment. Includes two fittings per pack.

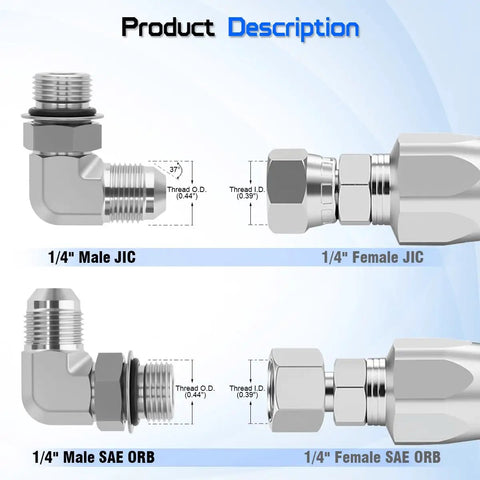

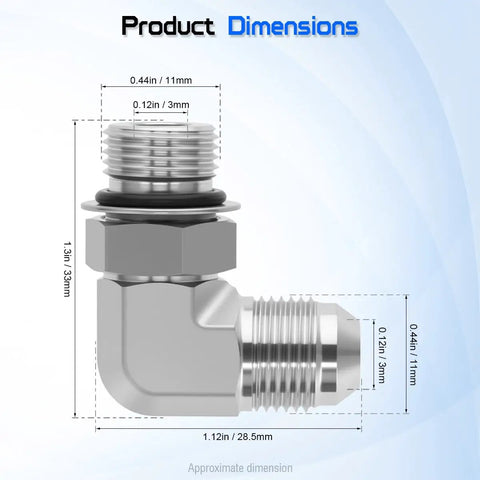

✅ 1/4" JIC 37° flare male to 1/4" ORB male, 90° elbow
✅ Constructed from high-tensile carbon steel with zinc plating for corrosion resistance
✅ Meets SAE J514 (JIC) and SAE J1926 (ORB) standards for interchangeability
✅ Captive O-ring provides leak-free seal in high vibration systems
✅ Pack of 2 for multiple installations
💡 What is a JIC to ORB hydraulic elbow adapter used for and how does it seal?
This handy fitting provides a reliable connection in hydraulic systems by using a captive O-ring to seal against a flat surface, reducing leaks in high vibration applications.
- Converts JIC flare to ORB for compact routing - Uses a captive O-ring for leak-free performance - SAE J514/J1926 standards ensure interchangeability - Pack of 2 helps with multiple installations✝️
