Nachi

NU221MY Nachi Cylindrical Bearing 105x190x36 Japan Large Bearings

No reviews
$629.99
SKU: Kit10299
UPC: 00193019087626
Item: NU221MY Roller Bearing
Type: Nachi Cylindrical Roller Bearing
Cage: Bronze Cage
Dimensions: 105mm x 190mm x 36mm/Metric
ID (inner diameter)/Bore: 105mm

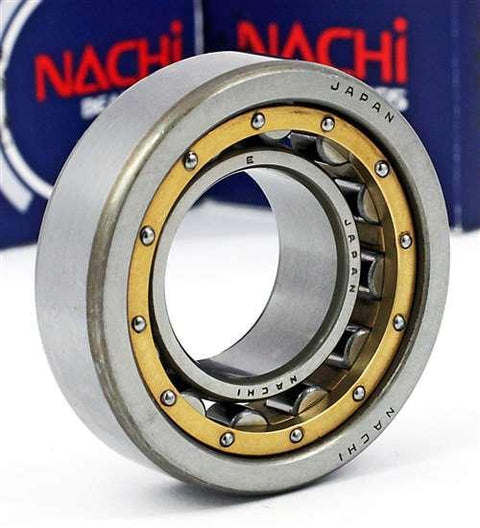

NU221MY Nachi Cylindrical Roller Bearing
Bronze Cage
105mm x 190mm x 36mm
Made in Japan


NU221MY Nachi Cylindrical Roller Bearing, Bronze Cage, Made in Japan, the NU221MY inner diameter is 105mm, the NU221MY outer diameter is 190mm and the NU221MY width is 36mm.

  • Item: NU221MY Roller Bearing
  • Type: Nachi Cylindrical Roller Bearing
  • Cage: Bronze Cage
  • Dimensions: 105mm x 190mm x 36mm/Metric
  • ID (inner diameter)/Bore: 105mm
  • OD (outer diameter): 190mm
  • Width/Height/thickness: 36mm
  • Size: 105mm x 190mm x 36mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 202,000 N
  • Static load rating Cor: 241,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,400 RPM
    • Oil Lubrication: 4,000 RPM
  • Made in Japan

Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
