Nachi

NU216MY Nachi Cylindrical Roller Bearing Japan 80x140x26 Bearings

$263.99
SKU: Kit10294
UPC: 00193019087572
Item: NU216MY Roller Bearing
Type: Nachi Cylindrical Roller Bearing
Cage: Bronze Cage
Dimensions: 80mm x 140mm x 26mm/Metric
ID (inner diameter)/Bore: 80mm

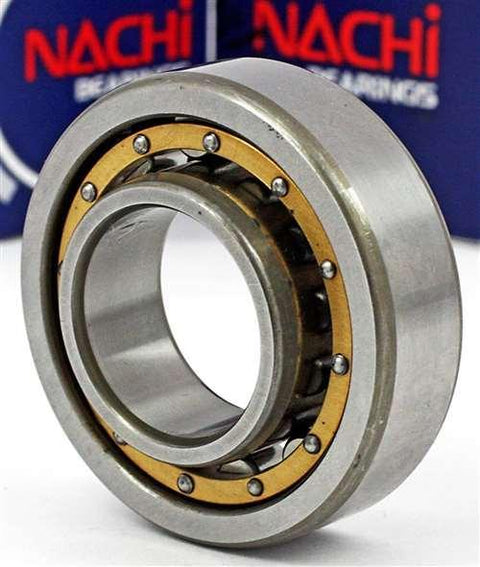

NU216MY Nachi Cylindrical Roller Bearing
Bronze Cage
Made in Japan


NU216MY Nachi Cylindrical Roller Bearings, Bronze Cage, Made in Japan, the NU216MY inner diameter is 80mm, the NU216MY outer diameter is 140mm and the NU216MY width is 26mm.

  • Item: NU216MY Roller Bearing
  • Type: Nachi Cylindrical Roller Bearing
  • Cage: Bronze Cage
  • Dimensions: 80mm x 140mm x 26mm/Metric
  • ID (inner diameter)/Bore: 80mm
  • OD (outer diameter): 140mm
  • Width/Height/thickness: 26mm
  • Size: 80 x 140 x 26 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 106,000 N
  • Static load rating Cor: 122,000 N
  • Limiting Speed:
    • Grease Lubrication: 4,500 RPM
    • Oil Lubrication: 5,300 RPM
  • Made in Japan

Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
