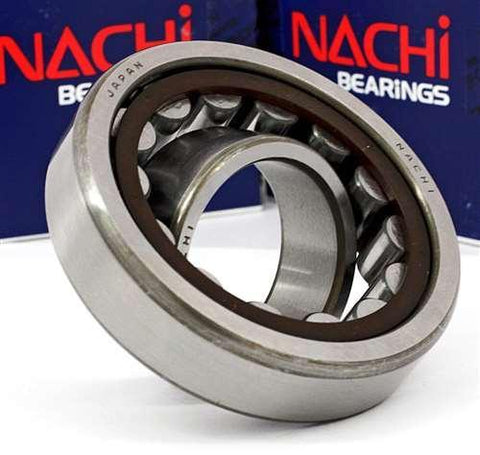

NU216EG Nachi Cylindrical Roller Bearing Japan 80x140x26 Bearings
Type: Nachi Cylindrical Roller Bearing
Cage: Nylon Cage
Dimensions: 80mm x 140mm x 26mm/Metric
ID (inner diameter)/Bore: 80mm
|NU216EG Nachi Cylindrical Roller Bearing|
80mm x 140mm x 26mm
Made in Japan
NU216EG Nachi Cylindrical Roller Bearing, Nylon Cage, Made in Japan, the NU216EG inner diameter is 80mm, the NU216EG outer diameter is 140mm, NU216EG width is 26mm.
Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
