Nachi

NU209 Nachi Bearings Steel Cage Japan 45x85x19 Bearings

No reviews
$56.88
SKU: Kit10248
Item: NU209 Cylindrical Roller Bearing
Type: Nachi Cylindrical Roller Bearing
Cage: Steel Cage
Dimensions: 45mm x 85mm x 19mm/Metric
ID (inner diameter)/Bore: 45mm

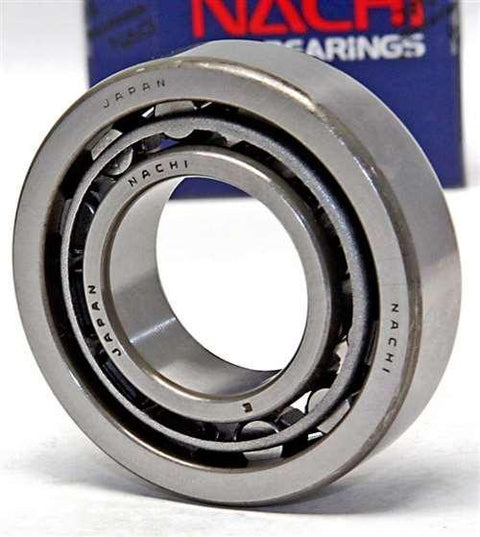

NU209 Nachi Cylindrical Roller Bearing
Steel Cage
45mm x 85mm x 19mm
Made in Japan


NU209 Nachi Cylindrical Roller Bearing, Steel Cage, Made in Japan, the NU209 inner diameter is 45mm, the NU209 outer diameter is 85mm, NU209 width is 19mm.

  • Item: NU209 Cylindrical Roller Bearing
  • Type: Nachi Cylindrical Roller Bearing
  • Cage: Steel Cage
  • Dimensions: 45mm x 85mm x 19mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 85mm
  • Width/Height/thickness: 19mm
  • Size: 45 x 85 x 19 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 46,000 N
  • Static load rating Cor: 47,000 N
  • Limiting Speed:
    • Grease Lubrication: 7,500 RPM
    • Oil Lubrication: 9,000 RPM
  • Made in Japan

Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
