NSS60 One-Way 60x110x22 Bearing Support Required Backstop Clutch

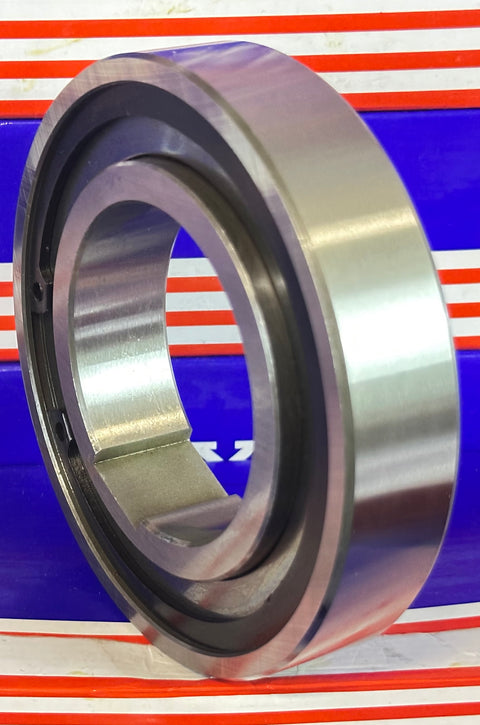

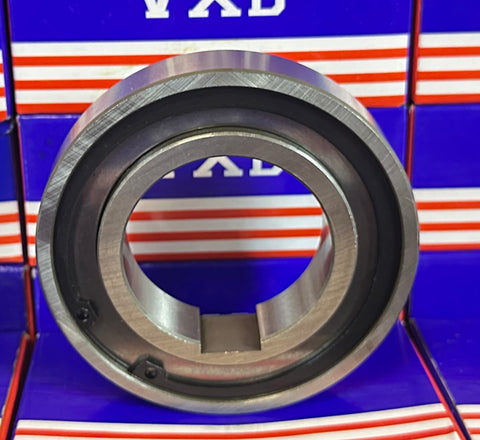

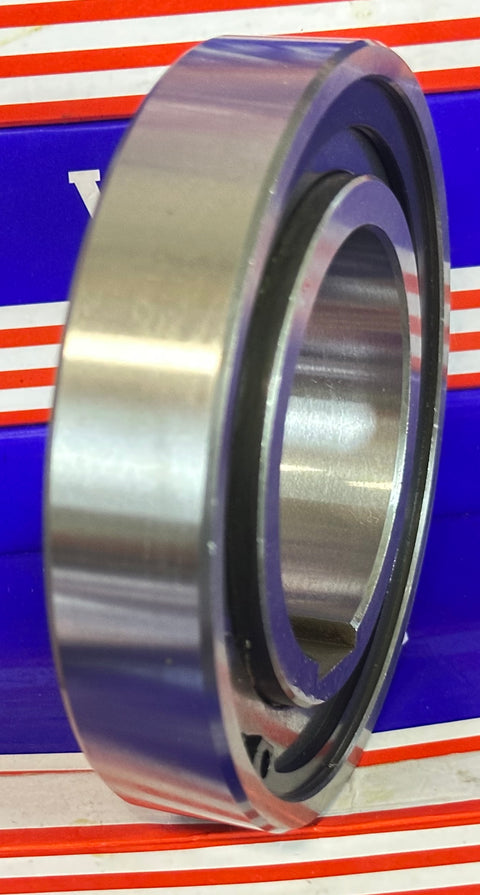

NSS60 One Way Clutch
✔️ Backstop / Overrunning / Indexing Freewheel 60mm x 110mm x 22mm

This NSS60 one-way clutch is a handy sprag-style freewheel used for overrunning, indexing, and backstopping in conveyor drives, hydraulic systems, mining equipment, textile machines, and other setups that require rotation in only one direction. It is the same size as a 6205 bearing but is not bearing-supported, so it must be paired with a 6205 bearing for proper mounting. Sold as one clutch.

✅ One-way sprag clutch
✅ Prevents reverse rotation during power loss
✅ Same envelope size as a 6205 bearing
✅ Requires a 6205 bearing for support
✅ Ideal for conveyors, pumps, washers, and industrial machinery
✅ Inner diameter 60mm
✅ Outer diameter 110mm
✅ Width 22mm
✅ Torque 406 TKN
✅ Resistance torque 26 TKN
✅ Inner race overrun speed 700 RPM
✅ Outer race overrun speed 1100 RPM
✅ One clutch included

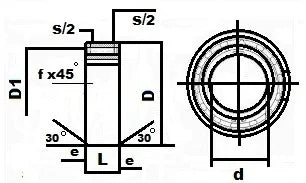

Dimensions (mm):
d 60
D 110
D1 100
L 22
s 2.5
e 1.2
f 1.5

💡 Why use a sprag-type one-way clutch in industrial drives?
It locks in one direction while overrunning smoothly in the other.
- Prevents roll-back on inclined conveyors
- Supports indexing mechanisms with controlled rotation
- Handy for backstopping, overrunning drives, and safety systems

This NSS60 clutch gives your system reliable one-direction control with the strength and stability needed for tough industrial applications.
