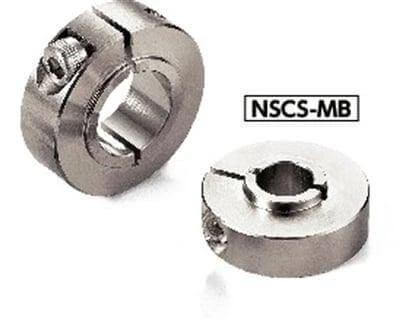

NSCS-15-12-MB3 NBK Set Collar for Securing Bearing, clamping type, close-up view showcasing hexagon socket bolt.

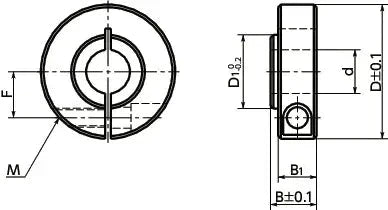

Technical drawing of NSCS-15-12-MB3 NBK Set Collar for Securing Bearing - Clamping Type. Made in Japan, showing dimensions.

NSCS-15-12-MB3 NBK Set Collar - For Securing Bearing - Clamping Type. Made in Japan

$65.00 $130.00you save $65.00
SKU: NSCS-15-12-MB3-NBK
Item: NSCS-15-12-MB3
Set Collar
Quantity: One Collar
Made in Japan
5-7 days shipping
NSCS-15-12-MB3 NBK Set Collar - For Securing Bearing - Clamping Type. Made in Japan



Characteristics:
  • Main body: S45C-Electrolysis-Nickel Plating
  • with Hexagon Socket Bolt SUSXM7
  • It can be fixed by pressing the bearing inner wheel only on the convex of the main body.
  • Optimal for securing bearing when it is difficult to fix the snap ring, etc. to the shaft.
  • Clamping Type. Mounting and removing are easy. Moreover this does not scratch the shaft.


Part Number d B B1 D D1 F M Quantity Per Pack
NSCS-15-12-MB3-NBK 15mm 12mm 11mm 35mm 19.2mm 12 M5 1
