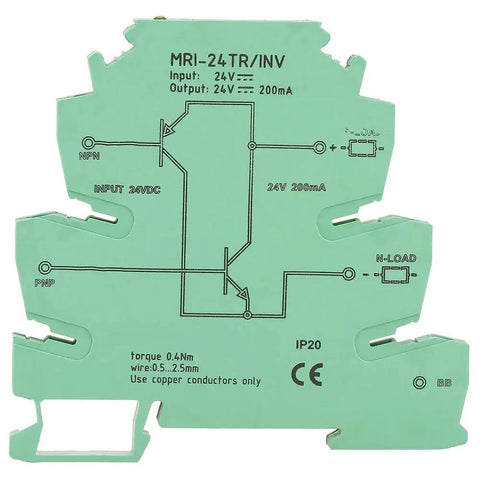

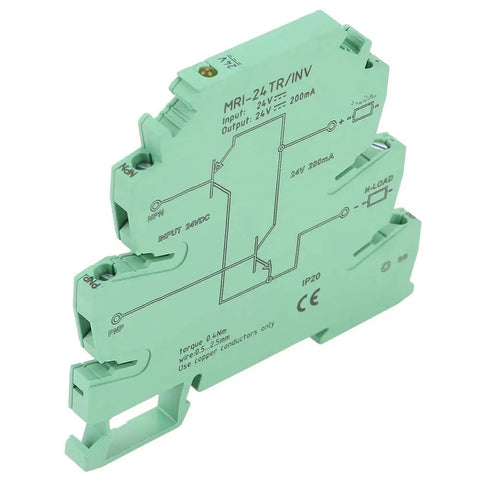

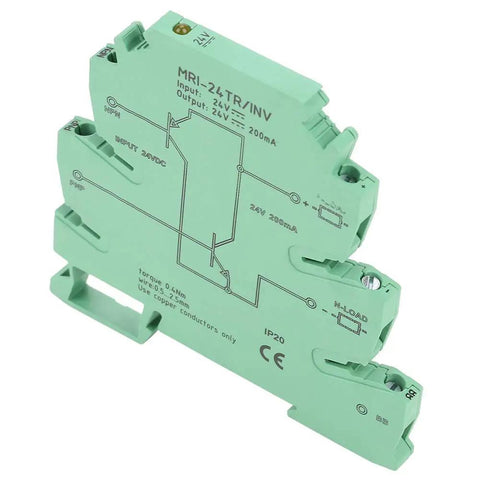

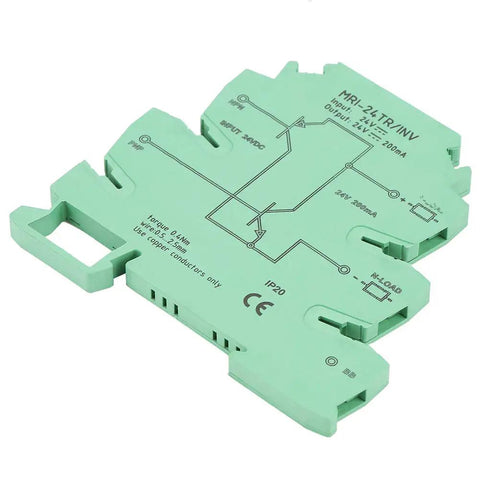

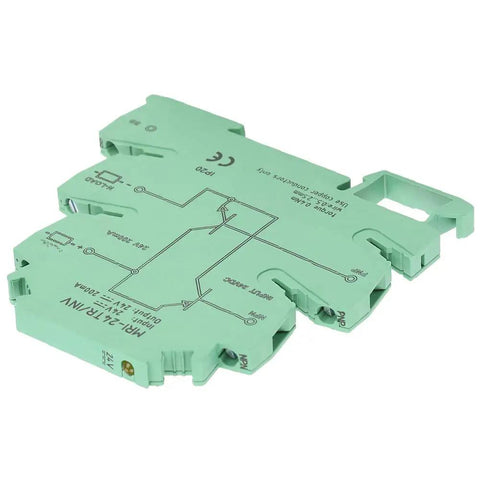

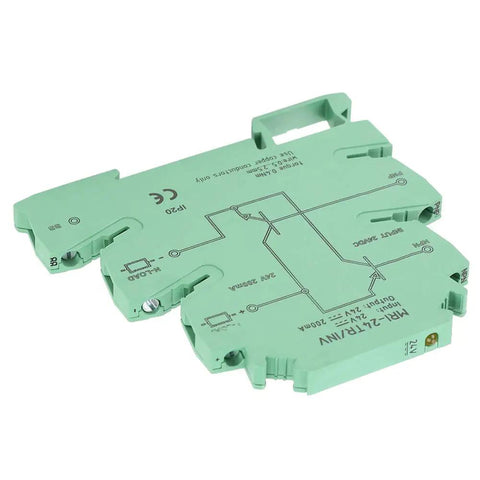

NPN To PNP Converter Module For PLC IO Level Shifting And Polar Sensor Interface MRI 24TR INV Converts NPN To PNP Or PNP To NPN Plug N Play Ready Up To 200mA 15kHz Max Frequency Slim 6.2mm Wide Relay Compatible

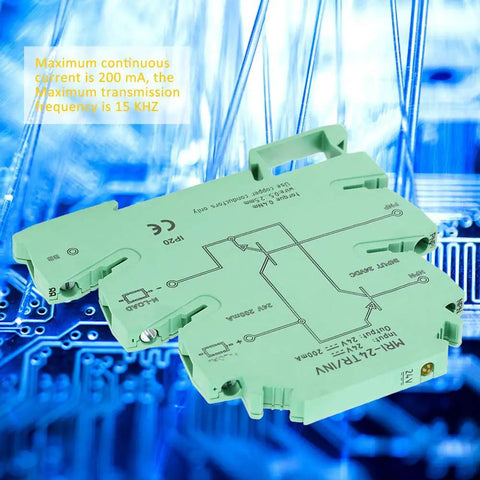

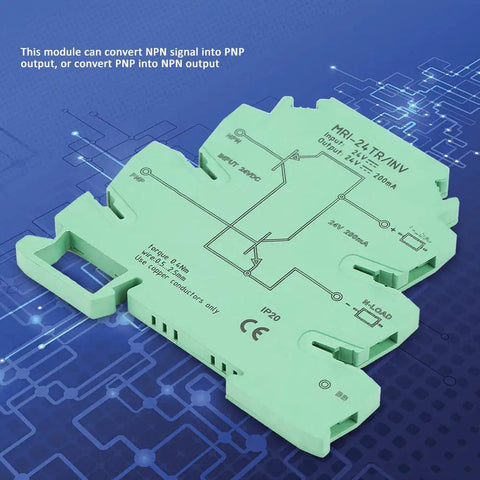

✔️ Converts NPN to PNP or PNP to NPN output; 200 mA max, 15 kHz
A compact, plug‑in converter for PLC I/O and polar sensor interfaces. This slim module fits tight DIN rail cabinets with a 6.2 mm width, saving valuable panel space while delivering reliable level shifting between NPN inputs and PNP outputs. Ideal for automation controllers, sensor interfaces, and PLC I/O circuits in industrial environments.
✅ Operating voltage: 20-30 VDC
✅ Max sustained current: 200 mA
✅ Voltage drop: <1 V
✅ Leakage current: <1 mA
✅ Transmission frequency: Max 15 KHZ
✅ NPN Input / PNP output
✅ Connect threshold: <5 V (UV = 24 V; <(UV - 19 V))
✅ Disconnect threshold: > 15 V (UV = 24 V; > (UV - 9 V))
✅ Min. limit value: -2 V
✅ Max. Limit value: 26 V (UV = 24 V; UV + 2 V)
✅ Working environment temperature: -20 ~ 50℃
✅ Connection: screw connection
✅ Size: 81×6.2×78 mm / 3.2×0.2×3.1 in
✅ Weight: Approx. 31 g
✅ Package list: 1 x NPN PNP converter
Color: default
💡 What is a NPN to PNP converter used for in PLC IO level shifting and sensor interfacing?
In automation, this handy module translates signals between devices that use different transistor logic, making wiring simpler and boosting compatibility.
- NPN to PNP signal translation for PLC IO - Handy way to interface different transistor types without extra gear - Compact DIN rail mounting keeps control panels neat - Supports up to 200 mA and 15 kHz switching for responsive control
