No Sweat Metric Tap And Clearance Drill Size Chart Poster M1.5 To M20 Thread ISO 50 And 75 Percent Standard Magnetic Shop Sheet For Toolboxes And Machinery Straight Shooter Guide

Quick Metric Tap And Drill Chart For M1.5 To M20 Thread Specs

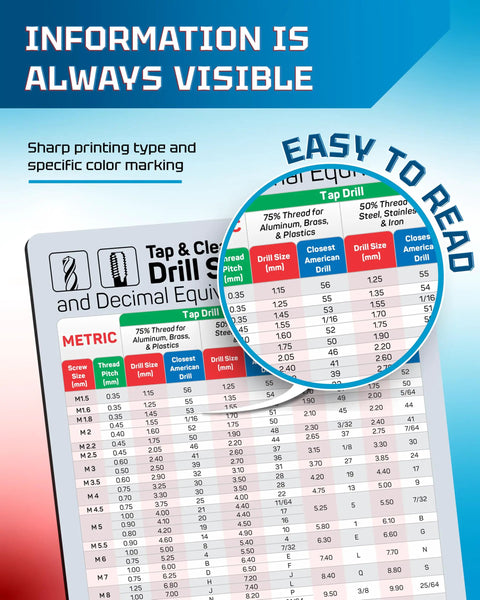

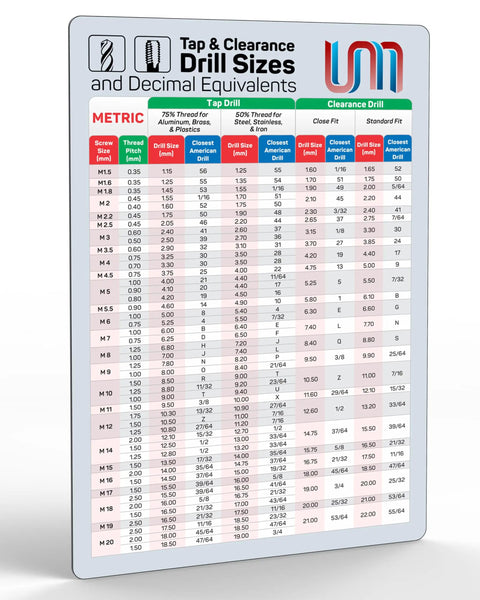

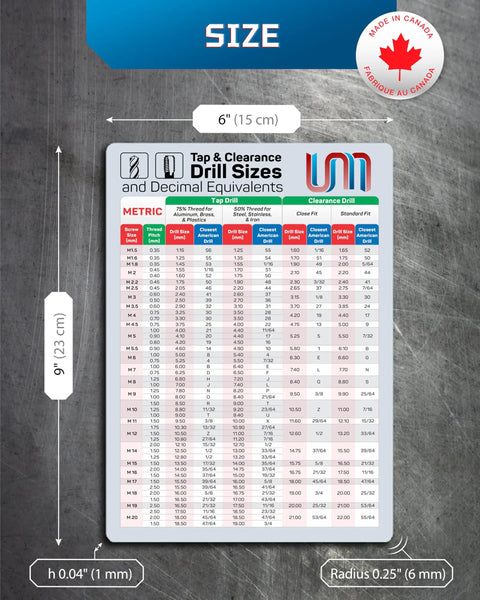

✔️ 6 by 9 inch magnetic board listing tap and clearance drill specs

This single pack of reference material gives you a quick way to find exact drill numbers when cutting internal threads on metal or wood parts. You can stick it directly onto your garage storage bin, mount it beside the milling machine, or tape it up on the shop wall whenever precision hole preparation comes up during build day.

✅ Flexible plastic magnetic backing grabs steel surfaces easily

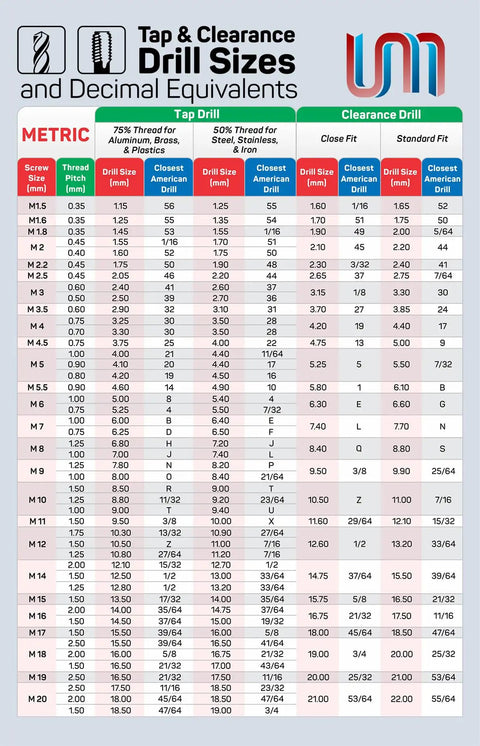

✅ Full coverage spanning M1.5 through M20 metric thread pitches
✅ Lists both fifty and seventy five percent threading depth options
✅ Shows standard and tight fit clearance holes plus US drill swaps

💡 Why do machinists switch between different thread engagement percentages when picking tap drills? Choosing the right ratio completely changes how much material stays behind inside the hole to hold onto the bolt securely. Tighter threading keeps fasteners locked down under heavy vibration loads during engine rebuilds. Looser setups free up more chips and cut smoother on harder aluminum brackets where heat builds up fast. Most mechanics default to seventy five depth for standard hardware swaps and drop down to half for deep cross threaded passages.

✝️
