NNF5028ADA-2LSV Sheave Bearing 2 Rows Full Complement Bearings

$1,142.99
SKU: NNF5028ADA-2LSV
UPC: 00193019306789
Item: NNF5028ADA-2LSV Sheave Bearing
Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
Dimensions: 140mm x 210mm x 95mm/Metric
ID (inner diameter)/Bore: 140mm
OD (outer diameter): 210mm
NNF5028ADA-2LSV Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing




NNF5028ADA-2LSV Sheave Bearing, bearing is a double row full Complement cylindrical roller bearing, NNF5028ADA-2LSV has the highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, the location of bearing is easy to locate axially due to snap rings on both sides, NNF5028ADA-2LSV lubricates with a lithium soap-based grease containing an EP additive, it lubricates through lubrication hole & grooves only in inner ring.

  • Item: NNF5028ADA-2LSV Sheave Bearing
  • Brand: VXB
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 140mm x 210mm x 95mm/Metric
  • ID (inner diameter)/Bore: 140mm
  • OD (outer diameter): 210mm
  • Width/Height/thickness: 95mm
  • Size: 140 x 210 x 95 mm
  • Snap Ring: WRE 210 (not included)
  • Quantity: One Bearing
  • Dynamic load rating Cr: 540,000 N
  • Static load rating Cor: 1,070,000 N
  • Limiting Speed:
    • Grease Lubrication: 700 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Application: Highly suitable in rope sheave

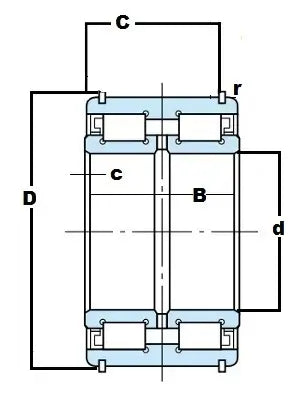

Dimensions (mm)
d D B C r(min) c
140 215 95 94 1 3
