NMRV030 Worm Gearbox RV030 Square Type Reducer For Nema23 Stepper Or Servo Motor Beefy 11Mm Input 14Mm Output 15 To 1 Gear Ratio Aluminum Alloy Housing Durable Quiet Performance

NMRV030 Worm Gearbox for NEMA23, 15:1, 1x unit, aluminum

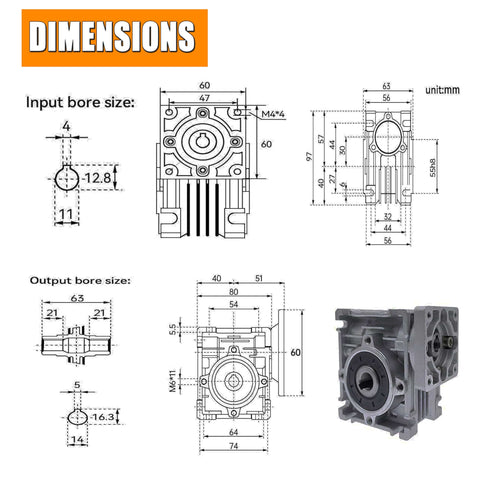

✔️ 11 mm input shaft, 14 mm output bore, 60x60 NEMA23 flange, 15:1

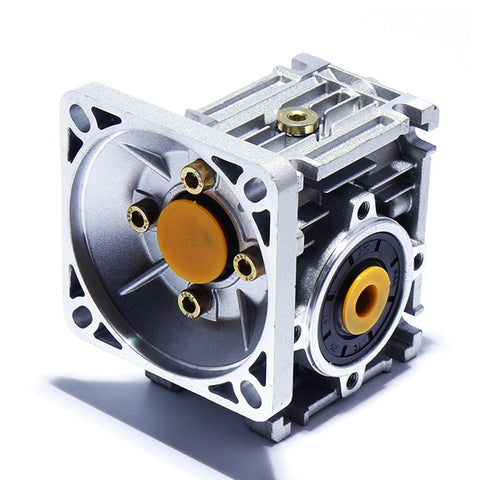

This NMRV030 worm gearbox is built to pair with NEMA23 servo or step motors, featuring an aluminum alloy housing for light weight and easy mounting. It’s commonly used in automation, packaging, textile machines, conveyors, and robotics where compact size and solid torque are needed.

✅ Model: NMRV030 worm gearbox with IP55 protection
✅ Input hole: 11 mm (0.43")
✅ Output hole: 14 mm (0.55")
✅ Input flange: NEMA23 (60x60 mm / 2.36" x 2.36")
✅ Housing: ADC12 aluminum alloy
✅ Gear ratio: 15:1

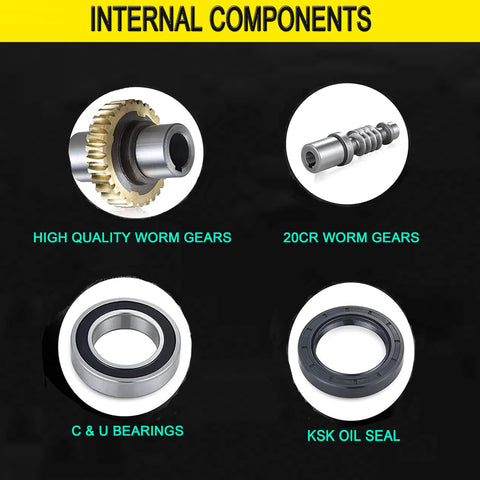

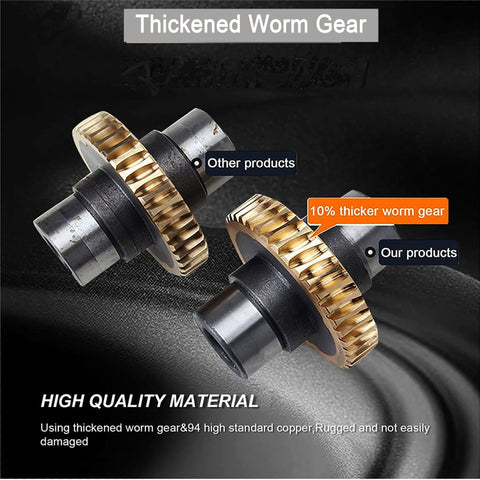

✅ Gear materials: QT-400 ductile iron worm, 20CR steel worm rod
✅ Sealing and torque resilience for heavy duty use

💡 What is a worm gear reducer used for?

A handy piece of gear that offers high torque at low speed in tight spaces. - low-speed high-torque reduction for compact automation - handy with servo or stepper motors in robotics and packaging - IP55 sealed housing protects against dust and moisture
