VXB

NF20 20mm Roller Type Freewheel One Way Clutch 20x62x36

$167.99
SKU: NF20
UPC: 00193019302255
Item: NF20
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External Bearing Support Required
Dimensions: 20mm x 62mm x 36mm/metric

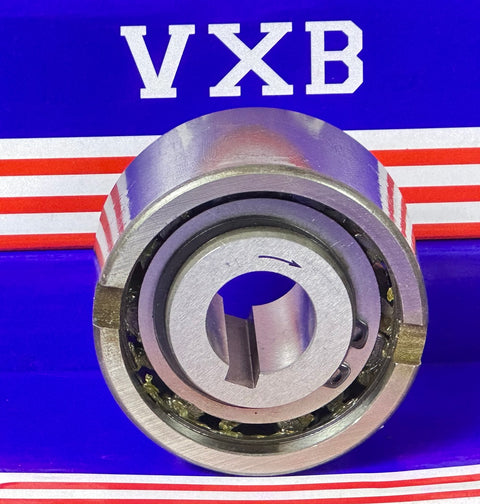

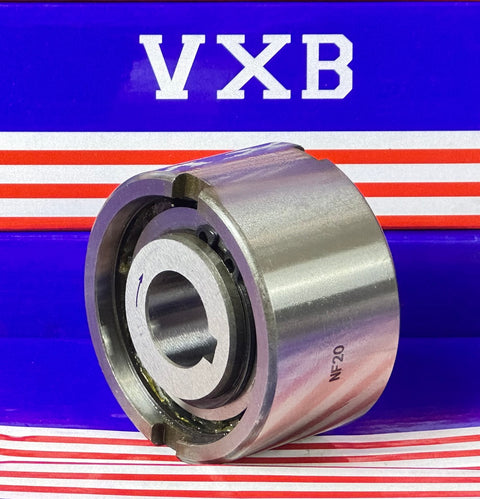

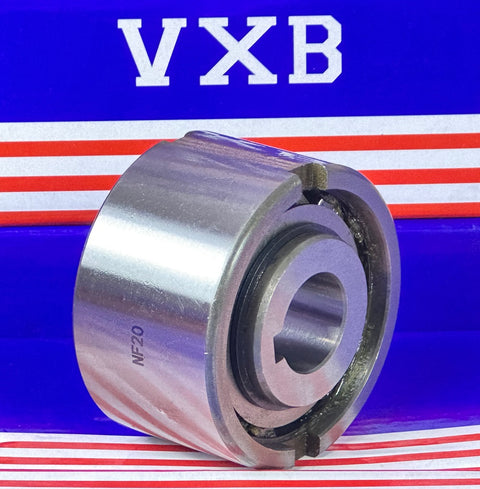

NF20 One Way Clutch
20x62x36




NF20 is a one-way clutch. One way Clutch Freewheel and also called as Backstops. NF20 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • Type: One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 20mm x 62mm x 36mm/metric
  • Inner Diameter: 20mm
  • Outer Diameter: 62mm
  • Width: 36mm
  • Quantity: One Clutch
Dimension (mm)
dH7 T 1) n 2) n 3) D n6 D 5 D 6 L t b r r1
20 188 3000 3600 62 52 37 36 3.5 8 2.0 2.0
