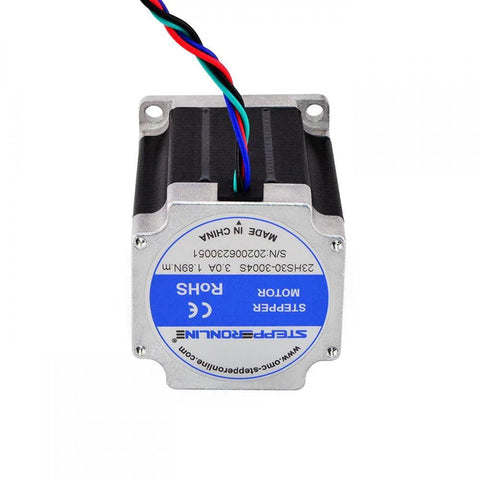

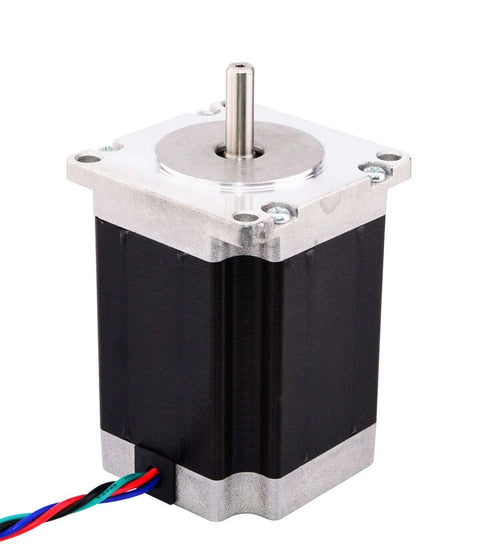

Nema 23 Stepper Motor 3.0A 269oz.in/1.9Nm 76mm Length Step Motor for CNC Mill Lathe Router

NEMA 23 Bipolar Stepper Motor for CNC: 1.9Nm Holding Torque, 76mm
✔️ 76mm length, 6.35mm shaft, 1.12Ω, 3.0A, 200 steps/rev

This single-unit NEMA 23 stepper motor is built for precision drive in CNC mills, lathes, and routers. It combines strong torque with a compact 76mm body and a 6.35mm shaft to fit tight toolpaths and mounts. Ideal where consistent microstepping and reliable stall resistance are needed.

Dimension	Metric	Imperial
Body length	76 mm	3.00 in
Footprint	57 mm x 57 mm	2.24 in x 2.24 in
Shaft diameter	6.35 mm	0.25 in

✅ 1.9Nm (269oz-in) holding torque, NEMA 23 bipolar, 4-wire

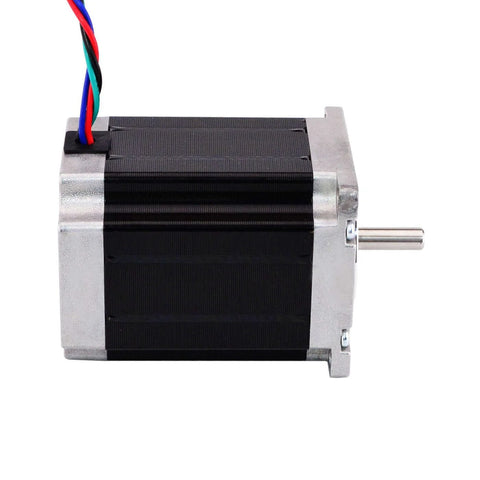

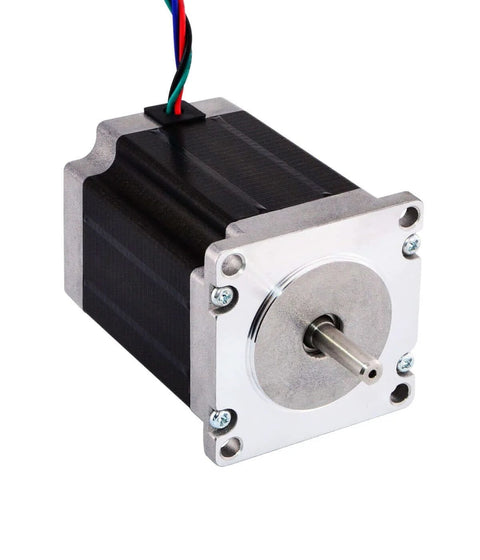

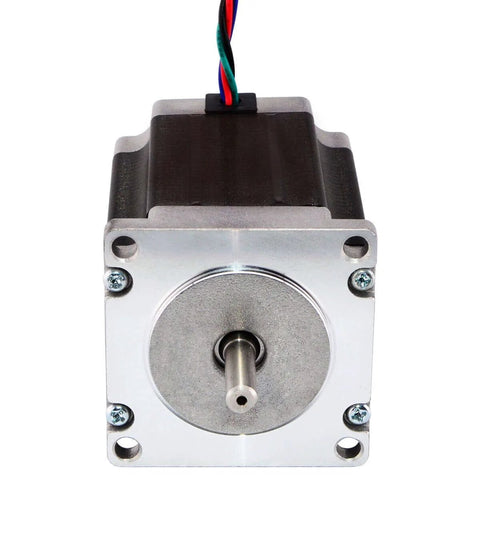

✅ Size: 76mm long body with a 2.24" square footprint and 6.35mm shaft
✅ Step angle 1.8° (200 steps/rev), rated current 3.0A, resistance 1.12Ω
✅ Ideal for CNC mills, lathes, and routers needing precise, compact motion

💡 What is a NEMA 23 stepper motor used for in CNC machines and how do torque, current, and step angle affect performance?

Handy for precise control in hobbyist and small-shop CNC setups.

- High torque helps maintain cutting force at low speeds and under load. - Current rating of 3.0A drives stronger torque but requires proper cooling and driver support. - 1.8° step angle (200 steps/rev) enables smooth, accurate positioning, especially with microstepping. - Compact 76mm length and 6.35mm shaft simplify mounting in tight enclosures.
