Nema 17 Stepper Motor With Plug And Play Driver 1.8 Degree 2 Phase High Torque 0.7Nm Bipolar 2.5A 1.5 Ohm 76mm 42 Stepper Motor With Controller For 3D Printer DIY Robot CNC Machine
✔️ 0.7Nm torque, 2.5A current, 76mm long, 42mm square body

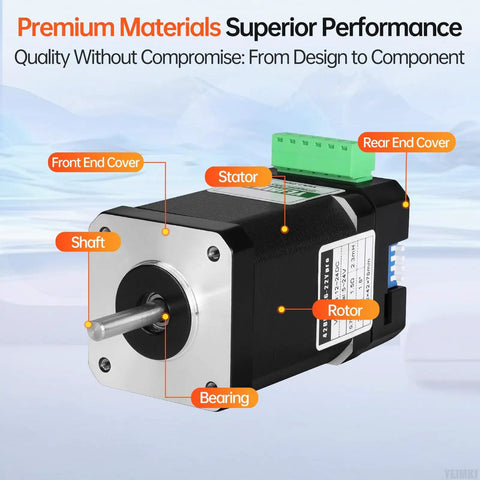

This single-unit NEMA 17 stepper motor comes with a plug-and-play driver for quick setup in 3D printers, CNC machines, and DIY robots. Its compact 42x42x76 mm body, 5 mm shaft, and integrated controller simplify wiring and installation.

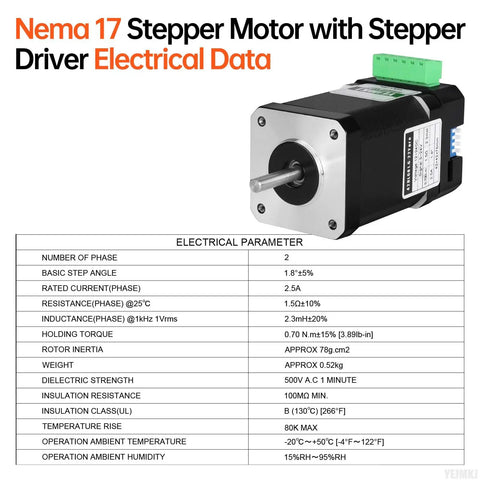

✅ Step angle: 1.8° (200 steps/rev)
✅ Holding torque: 0.7Nm (99.13 oz·in)
✅ Bipolar 2-phase with integrated driver
✅ Resistance: 1.5Ω, Inductance: 2.3mH ±20%
✅ Rated current: 2.5A
✅ Rotor inertia: ~78 g·cm²
✅ Body: 42 x 42 x 76 mm; Shaft Ø5 mm; Shaft length 22 mm; D-cut: 20 mm; Hole distance: 31 mm
✅ Weight: 506 g
| Dimension | mm | inches |
|---|---|---|
| Body size | 42 x 42 x 76 | 1.66 x 1.66 x 3.00 |
| Shaft diameter | 5 | 0.20 |
| Shaft length | 22 | 0.87 |
| D-cut length | 20 | 0.79 |
| Hole distance | 31 | 1.22 |
| Weight | 506 | 1.11 |
💡 What is a NEMA 17 stepper motor with integrated driver used for in hobby CNC and 3D printer builds? It’s a handy compact motion solution for precise control.
- Handy for precise positioning in tight spaces
- Common in DIY printers, robots, and small CNCs
- Reduces wiring by integrating the driver in the motor
- Works with 12-24V for stable torque
