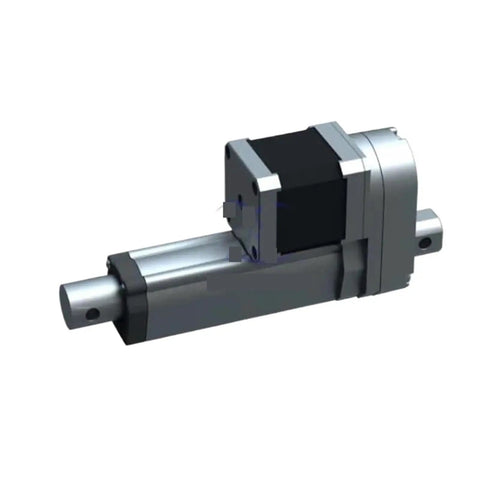

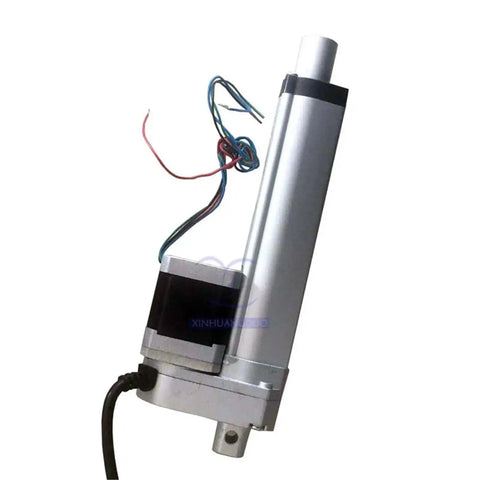

Nema 17 Stepper Motor Linear Actuator With Hella Smooth Electric Push Rod Delivering Rock Solid 90Kg Thrust For Badass Heavy Duty Automation Projects Moving At A Snappy 23 Mm Per Second Rate
✔️ Single Unit / 90kg Load / 23mm per Sec / Quiet Limit Switches
This single unit Nema sixteen stepper motor linear driver converts rotary spin into straight push pull motion using a precision trapezoidal thread. It works great for sliding gates, lift tables, camera sliders, and DIY robot joints where steady forward stroke matters more than fancy looks. The wide voltage tolerance lets you hook it up to standard hobby controllers while keeping acoustic noise way down so you can run it in occupied spaces without raising eyebrows. Its handy limit detection hardware stops sudden jolts and protects your drivetrain during heavy duty cycling.
✅ ninety kilogram continuous thrust capacity handles stiff mechanical loads without buckling✅ quiet brushless winding design maintains smooth operation below conversational decibel levels
✅ accepts six to twenty four volt direct current inputs for flexible breadboard or wall adapter power
✅ preset contact switches cut current automatically when the lead screw reaches full extension points
✅ compact footprint integrates easily into existing aluminum extrusion frames
💡 What key technical specs should you verify before installing a stepper motor linear actuator on a custom project?
You should always cross reference the rated thrust against your peak resistance points during acceleration phases.
- match the driver stepping mode to the voltage drop across the coil windings to keep thermal buildup manageable
- verify seal grade ratings on the exposed rod to stop grinding dust from chewing up the inner threads fast
- check phase wire color coding against your microstep driver schematic so polarity never flips mid cycle
- confirm physical stroke length leaves enough travel margin for your machine frame to accommodate safety clearances
✝️
