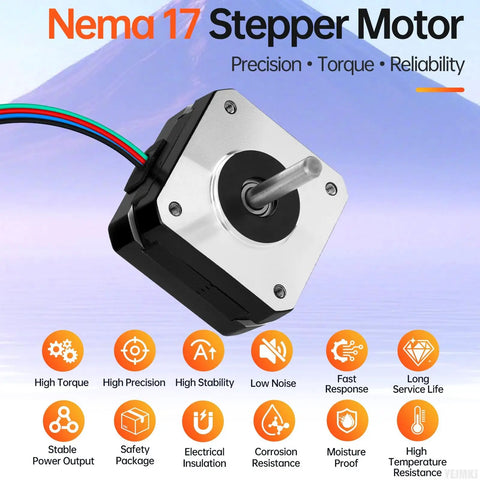

Nema 17 Stepper Motor 2 Phase 1.8 Degree 0.16 Nm High Torque Bipolar With 4 Wire Cable 1M 24mm Shaft 5mm Dia For 3D Printer DIY Robot CNC Machine Kit Bundle
✔️ 2-phase, 1.8° step, 0.16 Nm torque, 4-wire cable, 24 mm shaft
This compact Nema 17 bipolar stepper motor is built for precise axis control in small form-factor systems such as 3D printers, CNC setups, and DIY robots. Its 42x42x22.5 mm body and 24 mm shaft fit tight installations while delivering strong holding torque.

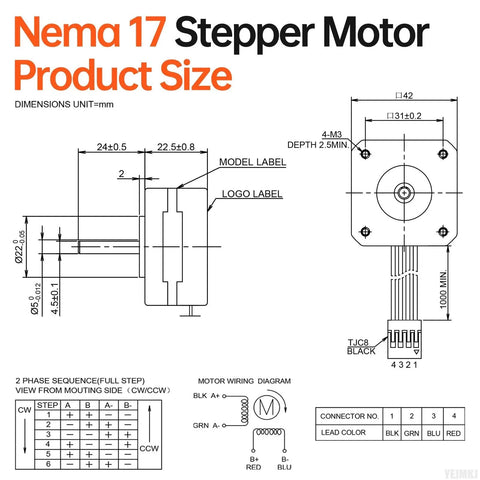

| Dimension | Metric | Inches |
|---|---|---|
| Body size | 42 × 42 × 22.5 mm | 1.66 × 1.66 × 0.89 in |
| Shaft diameter | φ5 mm | φ0.20 in |
| Shaft length | 24 ±0.5 mm | 0.95 ±0.02 in |
| Weight | 143 g | 5.04 oz |

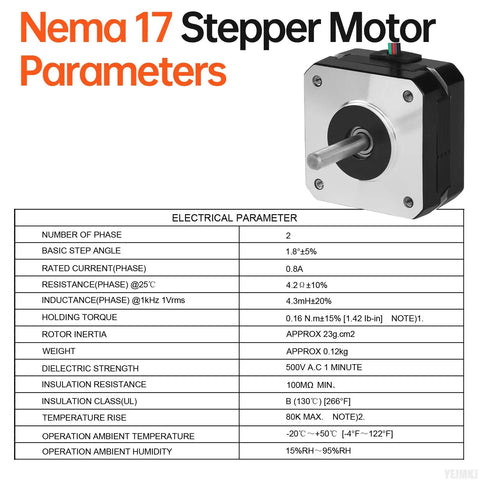

✅ 2-phase bipolar operation, 1.8° step angle (200 steps/rev)
✅ Holding torque 0.16 Nm (22.66 oz-in)
✅ Resistance 4.2 Ω, rated current 0.8 A
✅ Inductance 4.3 mH ±20%
✅ Shaft Ø5 mm, length 24±0.5 mm, cable length 1 m
💡 What is a Nema 17 stepper motor commonly used for in hobby CNC printers and DIY robots? This handy drive delivers precise motion in compact machines.
- precise axis control for 3D printers and small CNCs
- compatible with common stepper drivers for easy wiring
- solid torque at low speeds with quieter operation
