Nema 17 Lead Screw Stepper Motor With Beefy 0.4Nm Torque, 2000 Steps Per Revolution, 1.8 Degree Step Angle, Bipolar 2 Phase, 4 Lead, For CNC Machining And 3D Printing, Includes 12.2 Inch Lead Screw Travel And Compact 1.65X1.65X1.57 Inch Body

Nema 17 Lead Screw Stepper Motor with 0.4Nm Torque
✔️ 0.4Nm torque, 2000 steps/rev, 1.8°, 310mm lead screw travel

This compact Nema 17 bipolar lead screw stepper motor delivers precise linear motion for CNC machines and 3D printers. It excels at positioning along X, Y, and Z axes with a 1.8° step angle and a 0.4Nm holding torque, using the included 310 mm lead screw for smooth, repeatable travel.

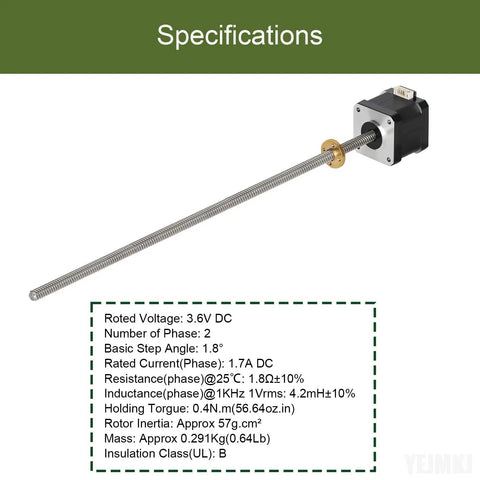

✅ Holding torque: 0.4 Nm (56.64 oz.in)
✅ Step angle: 1.8 degrees
✅ Phase: 2; Bipolar 4-lead configuration

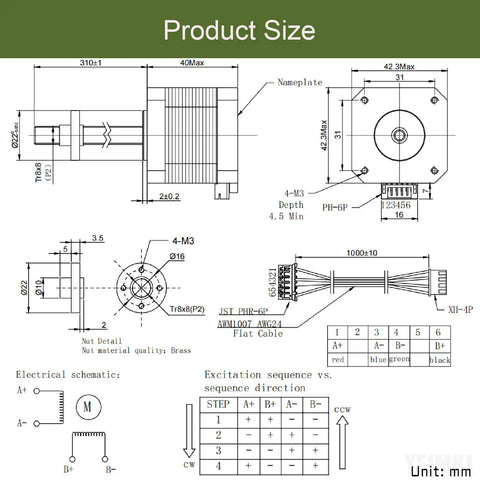

✅ Lead screw length: 310 mm (12.2 in); body length: 42 mm (1.67 in); weight: 291 g

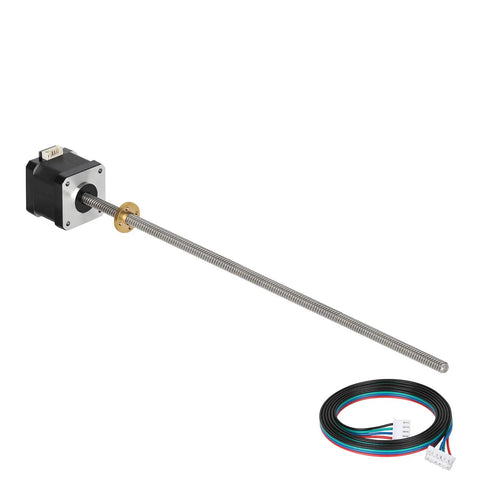

✅ Includes 1 m wiring harness and brass nut

💡 What is a Nema 17 lead screw stepper motor used for in CNC and 3D printing? This handy drive provides precise motion control and repeatability.

- Ideal for controlling print heads or tool cartridges with accurate axis positioning
- Compatible with standard lead screws and 2-phase bipolar drivers for simple setup
- Compact form factor fits tight spaces on desktop printers and small CNCs
- Great for hobbyists and light industrial tasks requiring reliable incremental motion
