Nema 17 Geared Stepper Motor With Planetary Gearbox 5 To 1 Gear Ratio 0.35 Degree Step Angle Bipolar 4 Wire For 3D Printer Extruder CNC And DIY Robotics With Beefy Torque And Fast Spin STEPPERONLINE

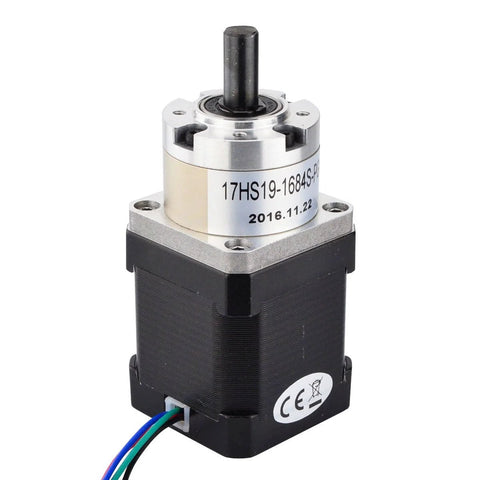

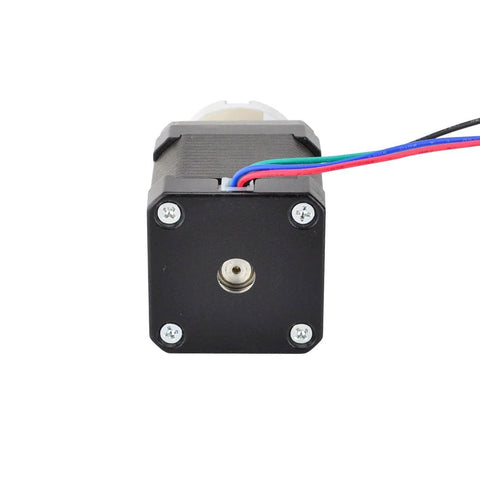

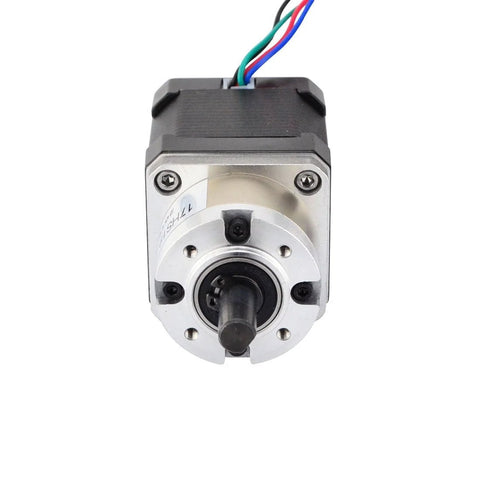

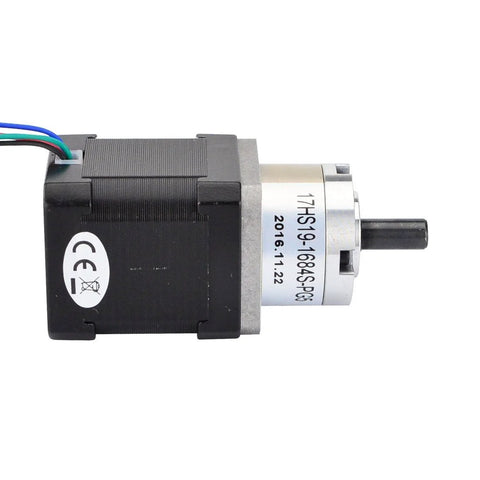

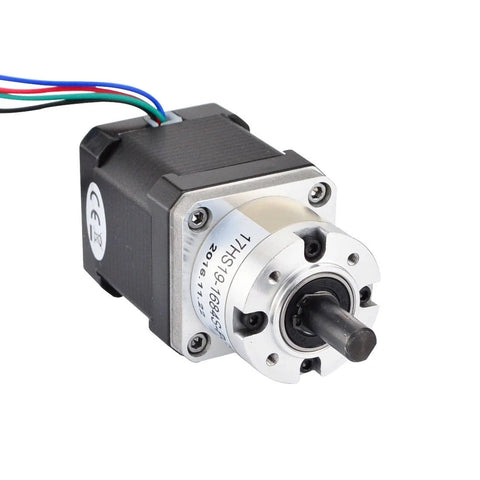

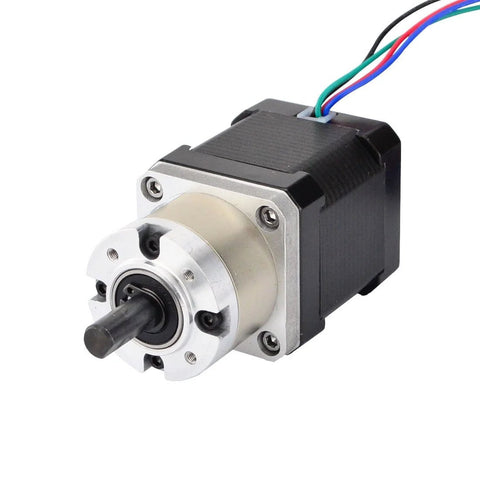

Geared NEMA 17 stepper: 5.18:1 planetary gearbox, single unit
✔️ 0.35° step, bipolar 4-wire, 1.68A, 1.65Ω, 5.18:1 gear ratio

This compact NEMA 17 geared stepper combines torque and speed in a compact form, perfect for compact 3D printers, CNC machines, extruder assemblies, and DIY robotics where room is tight and precise motion is needed.

✅ High torque from planetary gearbox in a small form factor
✅ 0.35° step angle for finer motion control

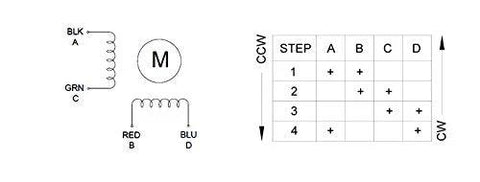

✅ 4-wire bipolar wiring for easy driver compatibility
✅ 5.18:1 gear ratio delivers strong low-speed torque

💡 What is a geared NEMA 17 stepper motor with planetary gearbox used for in hobby CNC and 3D printing?

It's handy for applications needing extra torque in tight spaces.

- handy for extruder drives and gantry axes in compact printers - provides high torque at low speeds with a 5.18:1 planetary gear - supports 0.35° micro-stepping for fine position control - uses bipolar 4-wire wiring for easy driver compatibility
