NEMA 1 Flow Switch With Brass Bushing And Rigid Paddle 1 Inch NPT Connection Ambient Up To 176 Degrees F 15 Amp At 125V To 250V AC DC High Flow Rate Up To 1500 GPM Made In USA

NEMA 1 Flow Switch with Brass Bushing, 1 in NPT, 1500 GPM
✔️ Ambient 176°F max; 15 A @125/250V; 1 in NPT; paddle

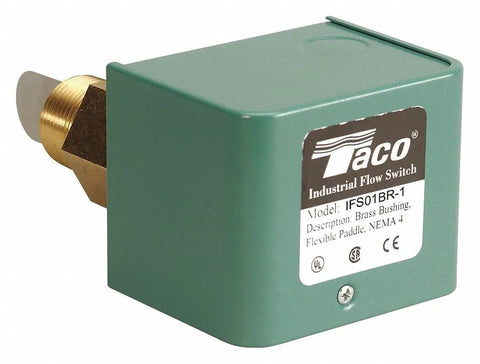

The flow switch is a compact, robust sensor used to monitor liquid flow in pipelines. With a brass housing and a 1 in NPT connection, it's commonly used in HVAC, water treatment, and industrial equipment to control pumps and protect components from dry running or overpressure.

✅ Flow switch type: paddle
✅ Connection: 1 in NPT
✅ Housing material: brass
✅ Flow rate: 4.5-1500 gpm
✅ Ambient temperature: up to 176°F
✅ Media temperature range: 32-250°F
✅ Contact rating: 15 A @125/250V AC; 15 A @125/250V DC
✅ Made in USA

💡 What is a paddle flow switch used for in industrial piping systems? It helps manage flow-based control to protect equipment and optimize process performance.

- Monitors flow to trigger pumps and valves - Handy for cooling loops, filtration, and process control - Compatible with 1 in NPT brass housing - Operating range: media 32-250°F, ambient up to 176°F ✝️
