Hudson

NBT-1 CS/SS Flange Ball Transfer Unit 1 Main Ball Mounted Bearings

$34.99
SKU: Kit12433
UPC: 00193019059142
Item: NBT-1 CS/SS Bearing
Type: Ball Transfer unit
Ball Material: Nylon
Housing Material: Carbon Steel
Support Ball: Stainless

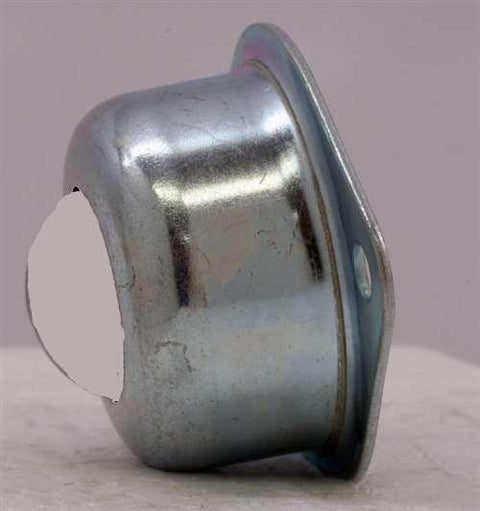

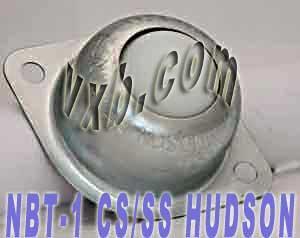

NBT-1 CS/SS Flange Mounted Ball Transfer Unit
1" Main Ball
Proudly made in the USA


NBT-1 CS/SS Flange Mounted Ball Transfer Unit, Main Ball is 1" Inch, 1" Main ball rotates on (80) 1/8" support balls, NBT-1 CS/SS is flange-mounted ball transfer is a heavy duty ball transfer unit, capable of supporting as many as 35 pounds (per unit).

  • Item: NBT-1 CS/SS Bearing
  • Type: Ball Transfer unit
  • Ball Material: Nylon
  • Housing Material: Carbon Steel
  • Support Ball: Stainless
  • Load Capacity: 35 LBS
  • Quantity: One Bearing
  • Brand: Hudson Bearings
  • Made in the USA

Features

  • Two-Hole and Flange-mounted
  • a 1 inch ball bearing resting on 80 individual support bearings and is ideal for most industrial transfer applications.BT-1 CS/SS ball transfers can also be used in a variety of non-industrial applications, including retail store displays and airport luggage transfers
  • Ball support cup is hardened and plated
  • Protective cover assures low torque and longevity

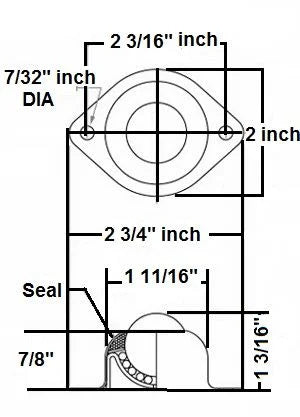

Dimensions (Inches)
d D N M F G
7/8" 1-3/16" 2-3/4" 1-11/16" 2-3/16" 2"
