NBK Japan BRPSS-6-N Set Screw Type Ball Transfer Unit - Spring Plunger Function for Upward Facing Applications, various sizes.

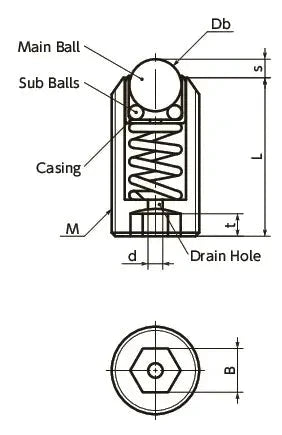

Technical drawing of NBK Japan BRPSS-6-N Set Screw Type Ball Transfer Unit - Spring Plunger Function for Upward Facing Applications.

NBK Japan BRPSS-6-N Set Screw Type Ball Transfer Unit - Spring Plunger Function for Upward Facing Applications

$49.99 $100.00you save $50.01
SKU: BRPSS-6-N-NBK
Item: BRPSS-6-N
Set Screw Type Ball Transfer Unit
Main Body Material: Stainless Steel
Main Ball Material: Polyacetal/White
5-7 days shipping
BRPSS-6-N Set Screw Type Ball Transfer Unit
with Spring Plunger Function for Upward Facing Applications


BRPSS-6-N is a set screw type ball roller with spring plunger function. The internal spring receives loads evenly even when the load is unbalanced. It can also be used as a general spring plunger with ball for fixing and locating the workpiece. The smooth rotation of the ball reduces friction between the main ball and receiving side. It has a drain hole and is intended for food production lines and other applications that require cleaning.


Part Number M L s Db B t d Withstand Load (N) Quantity per pack
BRPSS-6-N M6 13mm 0.8mm 3mm 3mm 2.5mm 1.5 8.1/29.6 1
