NBK Japan MRG-16C 5mm to 5mm Jaw-type Flexible Coupling

$61.99
SKU: MRG-16C-5mm-5mm
Coupling Bore 1 Diameter:5mm
Coupling Bore 2 Diameter:5mm
Coupling Length: 16
Coupling Outer Diameter:16
5-7 days shipping
NBK Japan MRG-16C 5mm to 5mm Jaw-type Flexible Coupling
NBK Japan MRG-16C 5mm to 5mm
Jaw-type Flexible Coupling


NBK Japan MRG-16C 5mm to 5mm Jaw-type Flexible Coupling, this is a Rigid coupling Set screw type coupling. The bellows allows eccentricity, angularmisalignment, and end-play.

  • Coupling Bore 1 Diameter: 5mm
  • Coupling Bore 2 Diameter: 5mm
  • Coupling Length: 16
  • Coupling Outer Diameter:16
  • Material: Stainless
  • This is a Rigid coupling - Set screw type coupling.
  • All products are provided with hex socket set screws.
  • In a case where the bore diameter is 4 or lessthe set screw is used in only one place.
  • Recommended dimensional allowances of applicable shaft diameter are h6 and h7.
  • Made in Japan
  • Quantity: One

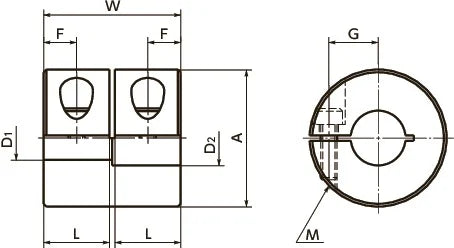

A L W F G M Max. Bore Diameter Wrench Torque(N-m)
16 7.5 16 3.75 5 M2.5 6mm 1
