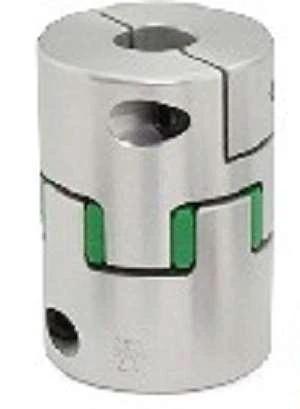

NBK Japan MJC-14CS-WH 1/8" inch to 4mm Jaw-type Flexible Coupling

NBK Japan MJC-14CS-WH 1/8" to 4mm Jaw-Type Flexible Coupling - Stainless Steel, Made in Japan, 1 pc pack
✔️ Jaw-type flexible coupling with bellows tolerates eccentricity and angular misalignment; bore 1/8 in and 4 mm, length 22 mm, OD 14 mm, stainless steel, single-pack.

NBK Japan MJC-14CS-WH is a jaw-type flexible coupling designed to transmit torque between shafts in precision drives while absorbing misalignment and end-play. It's ideal for servo and CNC systems, robotics, automation assemblies, and any setup requiring a compact, backlash-minimized connection with electrical insulation.

✅ Bore 1: 1/8 in (3.175 mm); Bore 2: 4 mm (0.157 in)
✅ Length: 22 mm (0.866 in); Outer diameter: 14 mm (0.551 in)
✅ Material: Stainless steel; Electrical insulation; Made in Japan
✅ Tight-fit design with zero backlash at low torque; easy hub-sleeve assembly
✅ Insert spider color varies with stock
✅ Wrench torque: 0.5 N·m (M2) / 0.25 N·m (M1.6)
💡 What is a jaw-type flexible coupling used for in precision drive systems? This coupling type is handy for machines where shafts may be misaligned or experience end-play, helping absorb misalignment while delivering smooth torque with minimal backlash. - Absorbs eccentricity and angular misalignment, reducing stress on bearings and gears - Provides electrical insulation and corrosion resistance with stainless steel construction - Delivers tight-fit zero-backlash at low torque for precise positioning - Easy to install and service in compact automation layouts Using this handy coupling improves accuracy, reduces maintenance, and extends equipment life in automation and robotics.
