NBK

NBK Japan MJB-55-EGR 19mm to 22mm Jaw-type Flexible Coupling

$475.99
SKU: MJB-55-EGR-19mm-22mm
Coupling Bore 1 Diameter:19mm
Coupling Bore 2 Diameter:22mm
Coupling Length: 78
Coupling Outer Diameter:55
5-7 days shipping
NBK Japan MJB-55-EGR 19mm to 22mm Jaw-type Flexible Coupling
NBK Japan MJB-55-EGR 19mm to 22mm
Jaw-type Flexible Coupling


NBK Japan MJB-55-EGR 19mm to 22mm Jaw-type Flexible Coupling, this is a Jaw type flexible coupling. The bellows allows eccentricity, angular misalignment, and end-play.

  • Coupling Bore 1 Diameter: 19mm
  • Coupling Bore 2 Diameter: 22mm
  • Coupling Length: 78
  • Coupling Outer Diameter:55
  • Material: Stainless
  • This is a jaw type flexible coupling.
  • Tight Fit enables transmission with zero backlash at low torque.
  • Tight fit allows you to assemble and partition the hub and sleeve smoothly.
  • Excellent flexibility allows eccentricity angular misalignment and twisting vibration to be accepted.
  • It has electrical insulation
  • Made in Japan
  • Quantity: One

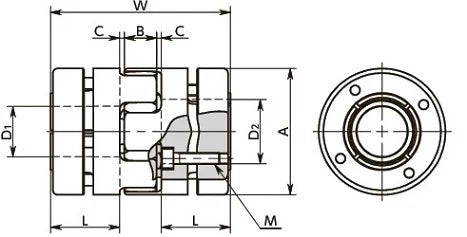

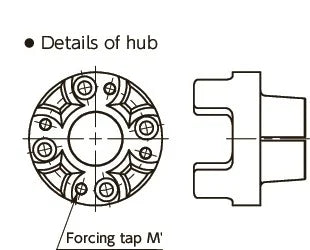

A L W B C F M Number of bolts M' Wrench Torque(N-m)
55 30 78 14 2 27.5 M5 4 M5 8.5
