NBK Japan MBB-40C 1/4" to 17mm Bellows-type Flexible Coupling, Zero-Backlash Bellows Flexible Shaft Coupling for Servo and Stepper Motors

NBK Japan MBB-40C Bellows-Type Flexible Coupling, 1/4" to 17 mm bore, zero-backlash, high torque, for servo and stepper motors. Pack size: One

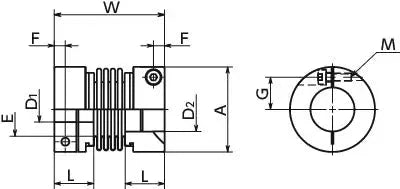

✔️ 1/4" (6.35 mm) to 17 mm bore, length 51 mm (2.01 in), outer Ø40 mm (1.57 in), zero-backlash, high torsional rigidity, high torque for servo and stepper motors.

✅ Bore: 1/4" (6.35 mm) to 17 mm
✅ Length: 51 mm (2.01 in)
✅ Outer diameter: 40 mm (1.57 in)
✅ Zero-backlash with high torsional rigidity
✅ High torque for precise servo/stepper motion
✅ Bellows-type design absorbs eccentricity and angular misalignment
✅ Made in Japan, NBK
✅ Pack size: One
💡 What is a bellows-type flexible coupling used for in servo and stepper motor drives for precise positioning? This coupling transmits rotation while accommodating shaft misalignment. - It compensates angular and axial misalignment to protect bearings - It maintains constant velocity to reduce wear and vibration - It handles high torque in a compact, flexible form - It’s handy for CNC, robotics, and automation projects This handy coupling improves accuracy and extends motor life in demanding motion tasks.
