NB TWA6 NB Ball Bushing Block 3/8 inch Linear Motion
$61.99
SKU: TWA6_NB
UPC: 00193019133613
UPC: 00193019133613
Item: TWA6 NB Shaft Support
Type: Nippon Bearing Linear Systems
Shaft diameter: 3/8" inch
Dynamic Load Rating: 667 N
Static Load Rating: 1067 N
Type: Nippon Bearing Linear Systems
Shaft diameter: 3/8" inch
Dynamic Load Rating: 667 N
Static Load Rating: 1067 N

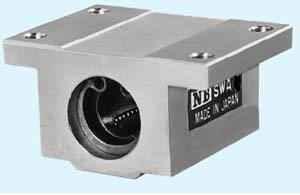

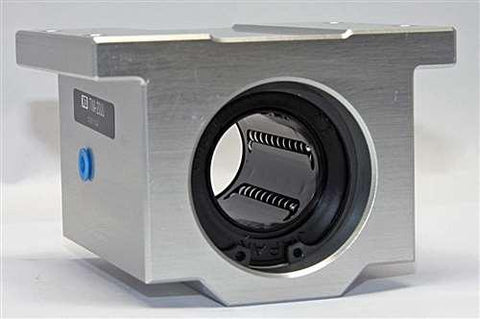

| TWA6 NB Pillow Block Slide Unit Nippon Bearing (NB) Linear Systems Made in Japan |
|
TWA6 NB 3/8" Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 3/8" inch dimensions, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

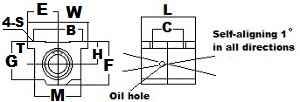

| Major Dimensions | Mounting Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 1/2" | 7/8" | 1-3/4" | 1-5/16" | 15/16" | 3/16" | 7/8" | 1-1/8" | 1-7/16" | 7/8" | 5/32" |
