NB TWA10WUU 5/8 inch Ball Bushing Block Linear Motion
$192.99
SKU: Kit7993
UPC: 00193019126585
UPC: 00193019126585
Item: TWA10WUU Shaft Support
Type: Nippon Bearing Linear Systems
Shaft diameter: 5/8" Inch
Dynamic Load Rating: 2850 N
Static Load Rating: 4448 N
Type: Nippon Bearing Linear Systems
Shaft diameter: 5/8" Inch
Dynamic Load Rating: 2850 N
Static Load Rating: 4448 N

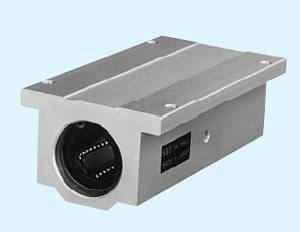

| TWA10WUU:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
5/8" Double Wide Block, Slide Unit Pillow Block (Inch Series), the inner diameter(bore) 5/8" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

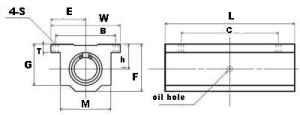

| Major Dimensions (inches) | Mounting Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 7/8" | 1-1/4" | 2-1/2" | 4" | 1-5/8" | 9/32" | 1-7/16" | 1-3/4" | 2-1/8" | 3" | 3/16" |
