NB

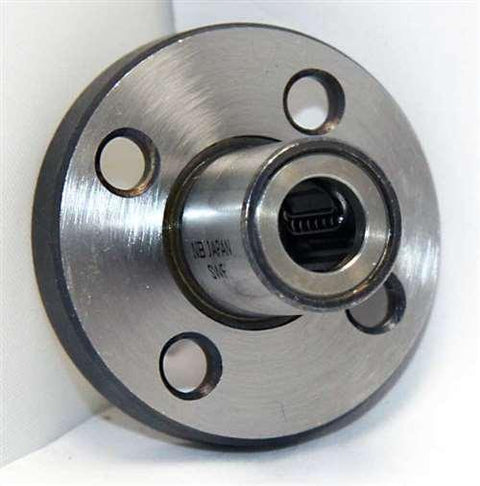

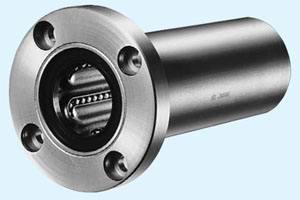

NB SWF12WUU 3/4 inch Ball Bushings Round Flange Wide Linear Motion
Title
$198.99
SKU: Kit12713
UPC: 00193019109830
UPC: 00193019109830
Item: SWF12WUU Bearing
Type: Linear ball bushing
Quantity: One Bearing
Dynamic load rating: 1,370 N
Static load rating: 2,740 N
Type: Linear ball bushing
Quantity: One Bearing
Dynamic load rating: 1,370 N
Static load rating: 2,740 N
SWF12WUU:Made in Japan:NB Linear Systems Round Flange Double Wide Type Nippon Bearing Linear Systems |
SWF12WUU 3/4" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 3/4" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

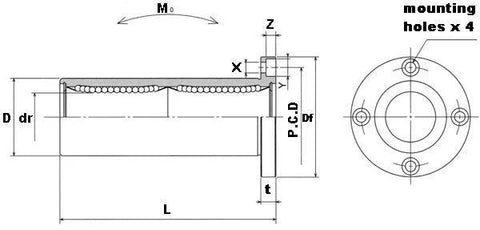

Major dimensions | ||||||||
---|---|---|---|---|---|---|---|---|
dr | D | L | DF | t | P.C.D. | X | Y | Z |
3/4" | 1-1/4" | 3-3/32" | 2-3/16" | 5/16" | 1-23/32 | 3/16" | 11/32" | 13/64" |
