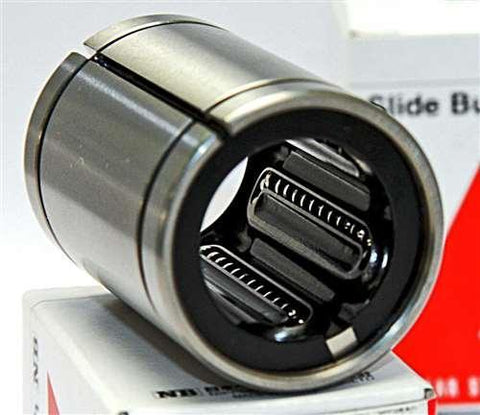

NB SW20AJ 1 1/4 inch Adjustable Ball Bushings Linear Motion

$115.99
SKU: kit8025
UPC: 00193019126820
Item: SW20AJ Ball Bearing
Type: Linear Motion Ball Bushing
Ball circuit: 6
Shaft Diameter: 1 1/4" inch
Size: 1 1/4" x 2" x 2 5/8" inch

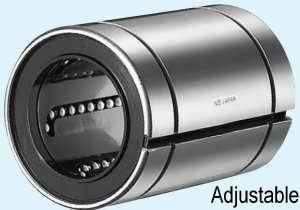

SW20AJ:Clearance Adjustable Type Ball Bushing
Made in Japan:NB Linear Systems


1 1/4" SW20AJ Clearance Adjustable Type Linear Motion Ball Bushing, 1 1/4" Bore inch type linear motion ball bushings/bearings, inner diameter(bore) is 1 1/4" inch,high accuracy grade linear bushings, inch series is mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Item: SW20AJ Ball Bearing
  • Type: Linear Motion Ball Bushing
  • Ball circuit: 6
  • Shaft Diameter: 1 1/4" inch
  • Size: 1 1/4" x 2" x 2 5/8" inch
  • Inner Diameter: 1 1/4" inch
  • Outer Diameter: 2" inch
  • Length: 2 5/8" inch
  • Dynamic load rating: 1,570 N
  • Static load rating: 2,740 N


The NB slide bush is a linear motion mechanism utilizing the rotational motion of ball elements. Since linear motion is obtained using a simple mechanism, the slide bush can be used in a wide variety of applications, including transportation equipment, food processing equipment, and semiconductor equipment. The NB slide bush uses a round shaft for the guide, resulting in effective space utilization, which allows for compact designs.
The raceway surface is precision ground. Since the contact surface between the ball elements and the raceway surface is minimized, the NB slide bush provides low friction when compared to other linear motion mechanisms.





Major dimensions and tolerance (inches) Eccentricity
(inch)
Radial clearance
(inch)
dr D L B W D1 h
inch tolerance inch tolerance inch tolerance inch tolerance
1-1/4" 0-.0005 2" 0-.00075 2-5/8" 0-.012 2-3/64" 0-.012 1/16" 1-7/8" 1" 0.0008" 0-.0003"
