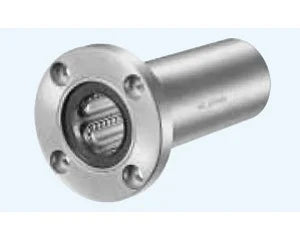

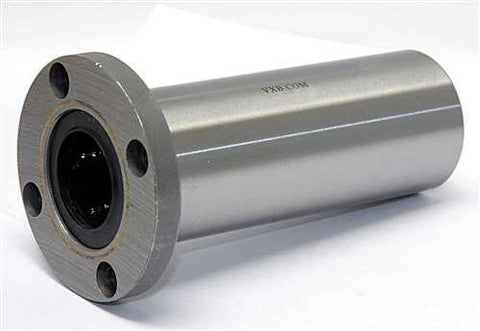

NB SMF12GW 12mm Slide Bush Miniature Linear Motion Bushings Bearings
$103.99
SKU: Kit20185
UPC: 00193019116777
UPC: 00193019116777
Item: SMF12GW Bearing
Type: Linear Miniature Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
Type: Linear Miniature Slide Bush
Retainer Material: Resin
Bearing Inner Diameter: 12mm
Quantity: One Bearing
| SMF12GW Round Flange Double Wide Type:Miniature Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Miniature Linear Systems |
SMF12GW Round Flange Double Wide Miniature Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

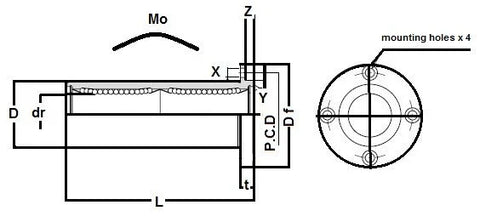

| Major Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | ||
| mm | tolerance | mm | tolerance | |||||
| 12 | 0-9 | 21 | 0-16 | 30 | 42 | 6 | 32 | 4.5 x 7.5 x 4.1 |
