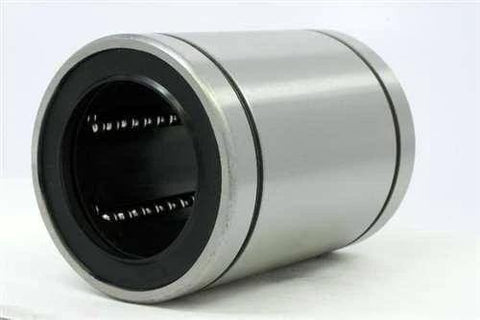

NB SM30GUU 30mm Ball Bushings Linear Motion
$106.99
SKU: Kit12710
UPC: 00193019109823
UPC: 00193019109823
Item: SM30GUU Bearing
Type: Linear ball bushing
Quantity: One Bearing
Dynamic load rating Cr: 1,750 N
Static load rating Cor: 2,740 N
Type: Linear ball bushing
Quantity: One Bearing
Dynamic load rating Cr: 1,750 N
Static load rating Cor: 2,740 N
| SM30GUU:Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
30mm Bore linear motion ball bushings/bearings, the inner diameter(bore)= 30mm dimensions with steel retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Dimensions(mm) | Eccentricity | radial clearance | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | |||||||
| mm | tolerance precision |
mm | tolerance | mm | tolerance | mm | tolerance | precision | high | |||
| 30 | 0-7 | 45 | 0-16 | 64 | 0-0.3 | 44.5 | 0-0.3 | 1.85 | 43 | 10 | 15 | -8 |
