NAS5026UUNR Sheave Bearing 2 Rows Full Complement Bearings

NAS5026UUNR Sheave Bearing, NAS5026UUNR is a double row full Complement cylindrical roller bearing, NAS5026UUNR has high dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5026UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5026UUNR lubricates through lubrication hole & grooves only in inner ring.

• Item: NAS5026UUNR Sheave Bearing
• Type: Double Row Full Complement Cylindrical Roller Sheave Bearing

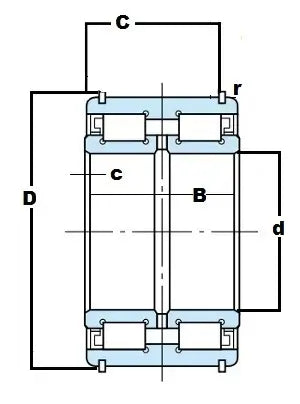

• Dimensions: 130mm x 200mm x 95mm/Metric
• ID (inner diameter)/Bore: 130mm
• OD (outer diameter): 200mm
• Width/Height/thickness: 95mm
• Size: 130 x 200 x 95 mm
• Snap Ring: WRE 200 (not included)
• Quantity: One Bearing
• Dynamic load rating Cr: 535,000 N
• Static load rating Cor: 1,000,000 N
• Limiting Speed:
  • Grease Lubrication: 750 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
