NAS5017UUNR Sheave Bearing 2 Rows Full Complement Bearings

NAS5017UUNR Sheave Bearing, NAS5017UUNR is a double row full Complement cylindrical roller bearing, NAS5017UUNR has high dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5017UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5017UUNR lubricates through lubrication hole & grooves only in inner ring.

• Item: Sheave Bearing
• Type: NAS5017UUNR Double Row Full Complement Cylindrical Roller Sheave Bearing

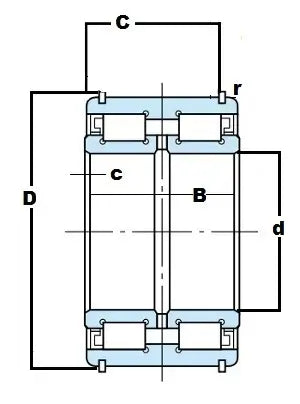

• Dimensions: 85mm x 130mm x 60mm/Metric
• ID (inner diameter)/Bore: 85mm
• OD (outer diameter): 130mm
• Width/Height/thickness: 60mm
• Size: 85 x 130 x 60 mm
• Snap Ring: WRE 130 (not included)
• Quantity: One Bearing
• Dynamic load rating Cr: 255,000 N
• Static load rating Cor: 445,000 N
• Limiting Speed:
  • Grease Lubrication: 1,150 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
• Snap Ring: WRE 130
