VXB

NAS5016UUNR Sheave Bearing 2 Rows Full Complement Bearings

$393.99
SKU: NAS5016UUNR
UPC: 00193019300046
Item: NAS5016UUNR Sheave Bearing
Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
Dimensions: 80mm x 125mm x 60mm/Metric
ID (inner diameter)/Bore: 80mm
OD (outer diameter): 125mm

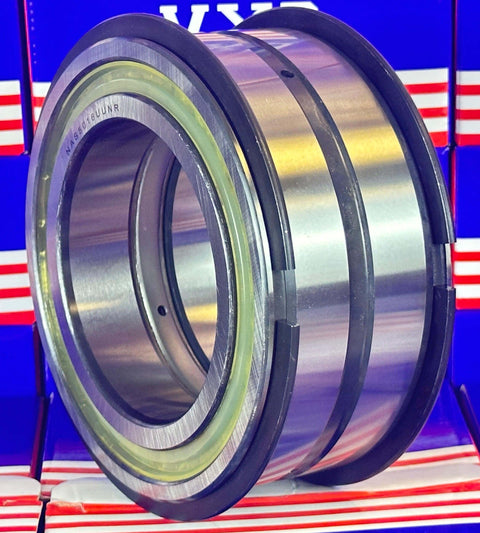

NAS5016UUNR Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing




NAS5016UUNR Sheave Bearing, NAS5016UUNR is a double row full Complement cylindrical roller bearing, NAS5016UUNR has highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5016UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5016UUNR lubricates through lubrication hole & grooves only in inner ring.

  • Item: NAS5016UUNR Sheave Bearing
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 80mm x 125mm x 60mm/Metric
  • ID (inner diameter)/Bore: 80mm
  • OD (outer diameter): 125mm
  • Width/Height/thickness: 60mm
  • Size: 80 x 125 x 60 mm
  • Snap Ring: WRE 125 (not included)
  • Quantity: One Bearing
  • Dynamic load rating Cr: 250,000 N
  • Static load rating Cor: 430,000 N
  • Limiting Speed:
    • Grease Lubrication: 1,250 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Snap Ring: WRE 125 (not included)
  • Application: Highly suitable in rope sheave

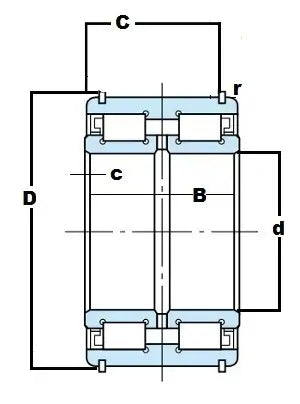

Dimensions (mm)
d D B C r(min) c
80 125 60 59 0.6 2
