VXB

NAS5015UUNR Sheave Bearing 2 Rows Full Complement Bearings

No reviews
$362.99
SKU: NAS5015UUNR
UPC: 00193019300039
Item: NAS5015UUNR Sheave Bearing
Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
Dimensions: 75mm x 115mm x 54mm/Metric
ID (inner diameter)/Bore: 75mm
OD (outer diameter): 115mm

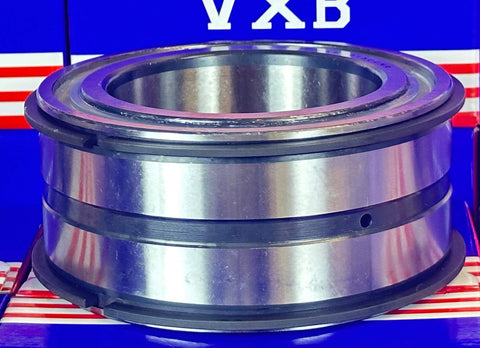

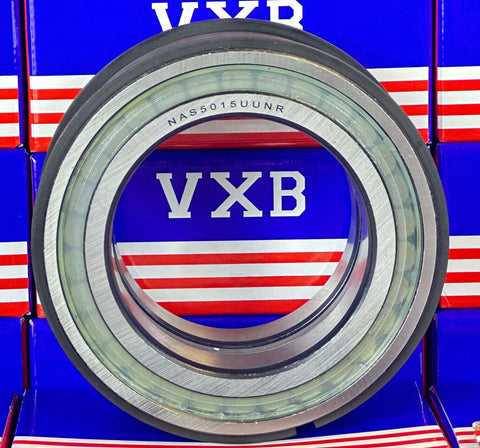

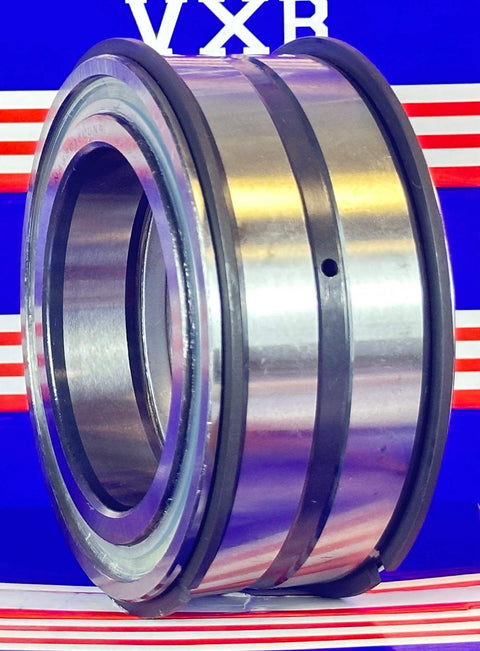

NAS5015UUNR Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing




NAS5015UUNR Sheave Bearing, NAS5015UUNR is a double row full Complement cylindrical roller bearing, NAS5015UUNR has highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5015UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5015UUNR lubricates through lubrication hole & grooves only in inner ring.

  • Item: NAS5015UUNR Sheave Bearing
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 75mm x 115mm x 54mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter): 115mm
  • Width/Height/thickness: 54mm
  • Size: 75 x 115 x 54 mm
  • Snap Ring: WRE 115 (not included)
  • Quantity: One Bearing
  • Dynamic load rating Cr: 177,000 N
  • Static load rating Cor: 305,000 N
  • Limiting Speed:
    • Grease Lubrication: 1,350 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Application: Highly suitable in rope sheave

Dimensions (mm)
d D B C r(min) c
75 115 54 53 0.6 2
