NAS5010UUNR Sheave Bearing 2 Rows Full Complement Bearings

No reviews
UPC: 00193019299982

NAS5010UUNR Sheave Bearing
Double Row Full Complement Cylindrical Roller Bearing

NAS5010UUNR Sheave Bearing NAS5010UUNR is a double row full Complement cylindrical roller bearing. NAS5010UUNR has the highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5010UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5010UUNR lubricates through lubrication hole & grooves only in inner ring.

  • Item: NAS5010UUNR Sheave Bearing
  • Type: Double Row Full Complement Cylindrical Roller Sheave Bearing
  • Dimensions: 50mmx80mmx40mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 80mm
  • Width/Height/thickness: 40mm
  • Size: 50 x 80 x 40mm
  • Snap Ring: WRE 80(not included)
  • Quantity: One Bearing
  • Dynamic load rating Cr: 99,500 N
  • Static load rating Cor: 158,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,000 RPM
  • Operating temperature: Suitable for -30 to +120 Celsius
  • Application: Highly suitable in rope sheave

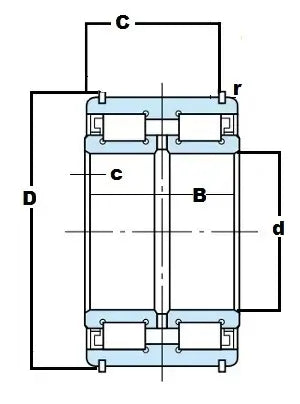

Dimensions (mm)
d D B C r(min) c
50 80 40 39 0.6 1.5
