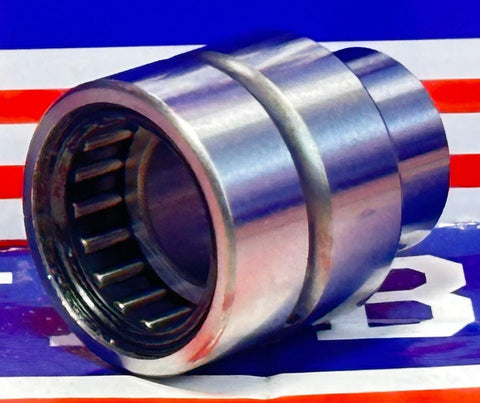

NA6902UU Needle Roller Bearing 15x28x24mm - Machined Type

Machined needle roller bearing NA6902UU , measures an inner diameter of 15mm, the outer diameter is 28mm, width of the cone (inner ring) is 24mm, and the outer ring width is 23mm.

• Item: NA6902UU Bearing
• Type: Needle Roller Bearing
• Closures: Rubber Sealed (both sides)
• Dimensions: 15mm x 28mm x 24mm /Metric
• ID (inner diameter)/Bore: 15mm
• OD (outer diameter): 28mm
• inner ring: 24mm
• outer ring: 23mm
• Size: 15mm x 28mm x 24mm
• Quantity: 1 Bearing
• Basic Dynamic Load Rating: 1,880 KGF
• Basic Static Load Rating: 2,760 KGF





  Dimensions
  d	dr	D	B	B1
  15mm	20mm	28mm	23mm	24mm
