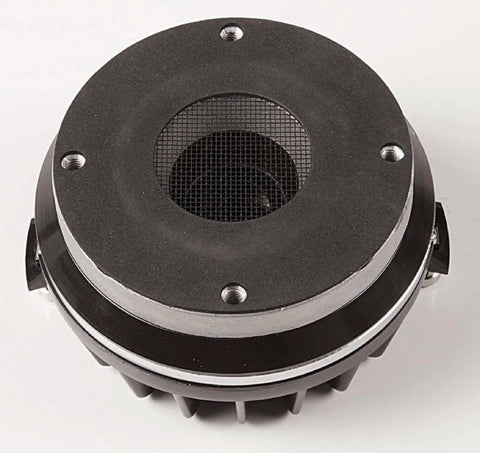

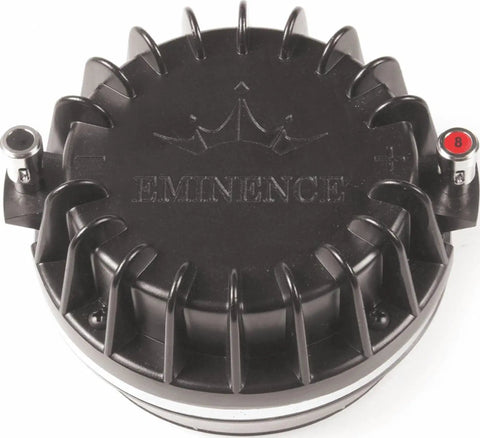

N320T-8 2 Inch Exit High Frequency Compression Driver With 3 Inch Voice Coil D3 Technology Damped Diametric Drive Neodymium Magnet Copper Shorting Ring Delivers Crazy Clean Sound At 8 Ohms 100 Watts Low Crossover Point For Pro Audio

N320T-8 2-Inch exit compression driver for pro audio
✔️ 8 Ω, 100 W AES, 0.52 kHz resonance, 800 Hz to 20 kHz

This compact high-frequency driver is designed for pro audio applications, delivering clean, detailed highs in loudspeaker cabinets, stage monitors, and PA systems. It pairs with horn-loaded enclosures and crossovers to achieve tight, controlled high-frequency response.

✅ Throat Size: 2.00-in / 50.80mm
✅ Nominal Impedance: 8.0 Ohms
✅ Minimum Impedance: 6.7 ohm @ 3.6 kHz
✅ Power Rating: 100 W (AES)
✅ Resonance: 0.52 kHz
✅ Usable Frequency Range: 800.0 Hz - 20 kHz
✅ Recommended Crossover: 800 Hz / 12 dBkHz
✅ Sensitivity: 110.40
✅ Magnet Material: Neodymium
✅ Magnet Weight: 11.00 oz / 0.31 kg
✅ Voice Coil Diameter: 3.0-in / 76.20mm
✅ Voice Coil Former: Polyimide
✅ Diaphragm Material: Titanium
✅ DC Resistance (Re): 4.80 Ohms
✅ Overall Diameter: 5.72-in / 145.30mm
✅ Driver Volume Displaced: 0.02 cu.ft. / 0.80 liters
✅ Depth: 3.10-in / 78.70mm
✅ Weight: 5.00 lbs / 2.30 kg
✅ Mounting Holes Diameter: 4X 1/4-20
✅ Mounting Hole B.C.D.: 4 in / 101.6 mm

💡 What is a 2 inch exit high frequency compression driver used for in pro audio setups?

In short, it's handy for delivering crisp HF detail in loudspeakers. - enhances high-frequency clarity in horn-loaded cabinets - pairs with crossovers around 800 Hz for balanced output - supports compact enclosures with wide HF coverage - improves efficiency with neodymium magnets and copper shorting rings✝️
