N Type Lightning Arrestor 0-6 GHz 50 Ohm Bi-Directional Protection N-Male N-Female Mountable Outdoor Panel Bulkhead for Ham Radios GPS 900MHz 2.4GHz 5GHz 3G 4G LTE and Other Outside Antennas
✔️ Wideband 0-6 GHz, 50Ω, bi-directional N-male/female panel mount
This N-Type lightning arrestor is designed to protect outdoor RF gear from surges and lightning. It's ideal for ham radios, GPS receivers, and outdoor antennas and cellular boosters mounted on walls or masts.
✅ Frequency range: 0-6 GHz
✅ Impedance: 50 ohms

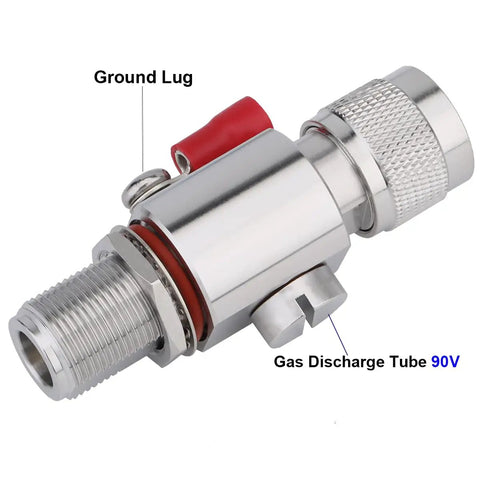

✅ Discharge voltage: DC 90V; replaceable gas discharge tube with multi-strike capability

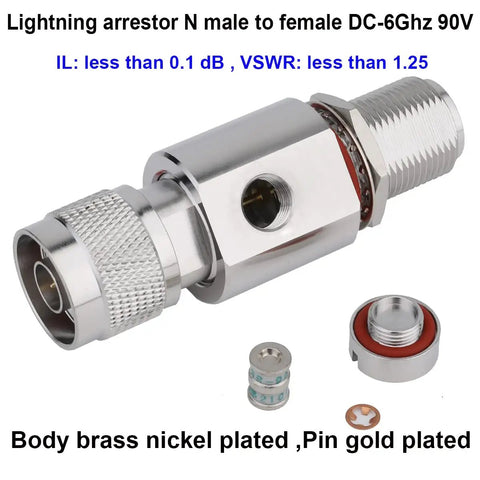

✅ Insertion loss: <0.1 dB; VSWR <1.25

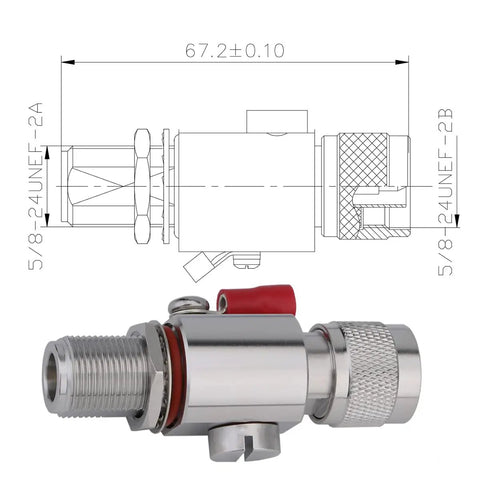

✅ Connectors: N-Male & N-Female bulkhead, brass nickel plated
✅ Material: Brass nickel plated body
✅ Operating temperature: -55℃ to +155℃; RoHS compliant
💡 What is a N-Type lightning arrestor used for in outdoor RF antenna installations?
It shields radios and receivers from surges and lightning while maintaining signal integrity in exposed environments.
- Protects ham radios, GPS receivers, 900 MHz and 2.4 GHz outdoor antennas
- Maintains DC pass-through with very low insertion loss and 50 ohm impedance
- Uses bulkhead N connectors for easy outdoor mounting and grounding
