Must Have TIG Gas Lens Collet Bodies Kit For DB SR WP 17 18 26 Welding Torch Large Diameter Alumina Ceramic Nozzle Cups 57N75 6 57N74 8 53N88 10 53N87 12 53N89 15 45V204 0.040 20 Piece Set

20 Piece TIG Gas Lens Kit for DB SR WP 17 18 26 Torches

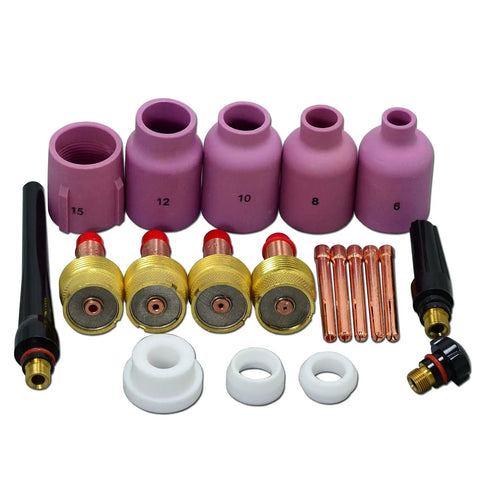

✔️ Includes 20pc set: large diameter gas lens nozzles and 5 collets

This 20-piece TIG gas lens kit is built for 17, 18, and 26 series air‑cooled and water‑cooled welding torches, covering brands like Lincoln PTA-17/18/26, Miller Diamondback DB17/18/26, and Weldcraft WP-17/18/26. It includes large diameter alumina ceramic nozzle cups and compact gas lens assemblies to improve gas coverage and arc stability during precision TIG welding.

✅ Large diameter gas lens nozzle cups: 57N75 D9.6 x 47.6mm (3/8" x 1-15/16"), 57N74 D12.7 x 47.6mm (1/2" x 1-15/16"), 53N88 D16 x 47.6mm (5/8" x 1-15/16"), 53N87 D19.1 x 47.6mm (3/4" x 1-15/16"), 53N89 D24 x 33.3mm (15/16" x 1-5/16")

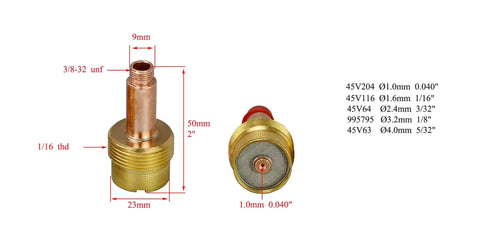

✅ Gas Lens cups: 45V204 0.040" 1.0mm, 45V116 1/16" 1.60mm, 45V64 3/32" 2.40mm, 995795 1/8" 3.2mm
✅ TIG Collets: 10N21 0.020" 0.5mm, 10N22 0.040" 1.0mm, 10N23 1/16" 1.6mm, 10N24 3/32" 2.4mm, 10N25 1/8" 3.2mm
✅ TIG Back Caps: 57Y02, 57Y03, 57Y04
✅ Gas Lens Insulator: 54N63 18-7 18CG
✅ Note: Requires 54N63 Large Diameter Gas Lens Insulator

💡 What is a TIG gas lens kit used for with 17/18/26 welding torches?

It’s a handy setup that optimizes gas flow and arc stability for cleaner TIG welds across common torch brands.

- improves shielding gas coverage for consistent welds
- reduces turbulence in the gas lens path for a steadier arc
- compatible with Lincoln PTA-17/18/26, Miller Diamondback DB17/18/26, Weldcraft WP-17/18/26
✝️
