Must Have Piezoresistive Washing Machine Water Level Sensor For Control Board, Compatible With Whirlpool Maytag Amana, 8 Pin DIP Analog Output, Low Pressure 6kPa, Real Time Water Level Detection, Durable Sensor

Piezoresistive Water Level Sensor for Washing Machines Solo

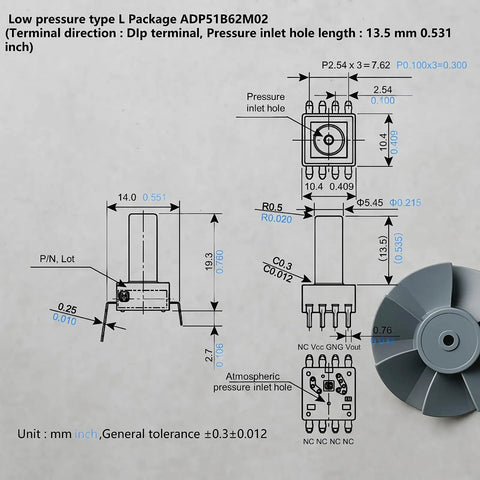

✔️ 8-pin DIP, 0.5-4.5V output, 6kPa low-pressure level detection

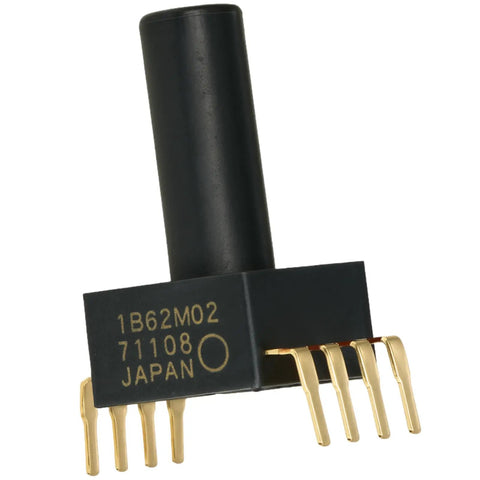

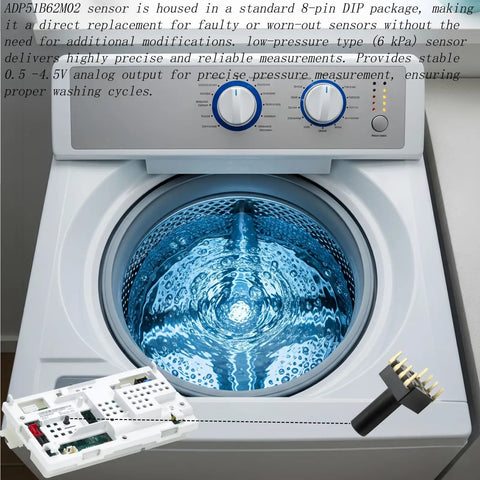

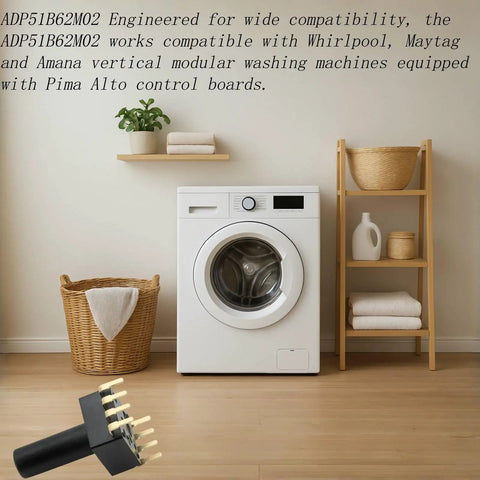

ADP51B62M02 piezoresistive pressure sensor detects water level changes in real time for washing machines. This unit is designed for Whirlpool, Maytag, and Amana vertical modular washers with Pima Alto control boards, helping ensure accurate water level sensing during each cycle.

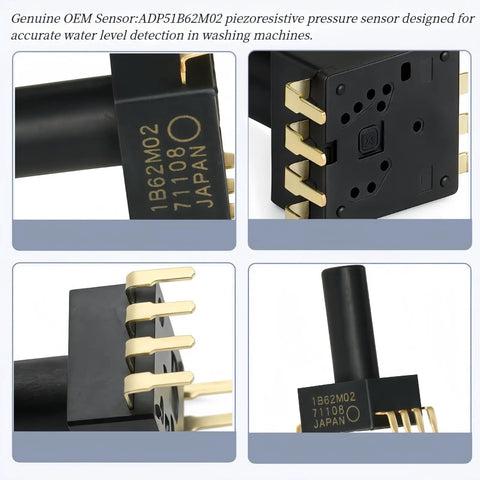

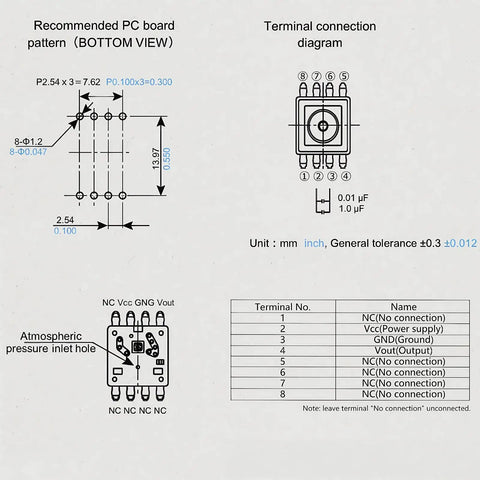

✅ 8-pin DIP package for direct replacement
✅ 0.5-4.5V analog output compatible with control boards
✅ Low-pressure 6kPa range for precise sensing
✅ Real-time water level detection delivers stable cycle operation

💡 What is a piezoresistive water level sensor used for in washing machines? This handy device feeds real-time level data to the control board to manage fill levels and prevent overflow.

- Precise water-level readings prevent overflow and underfill.
- Handy for optimizing cycle timing, water use, and energy efficiency.

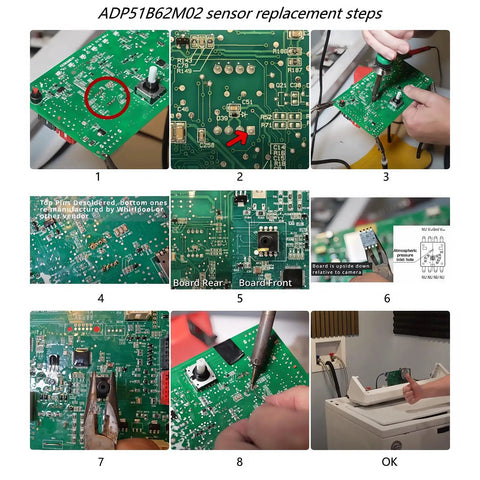

- Easy replacement on compatible control boards for quick maintenance.
✝️
