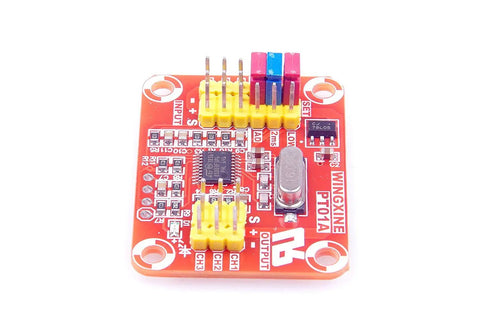

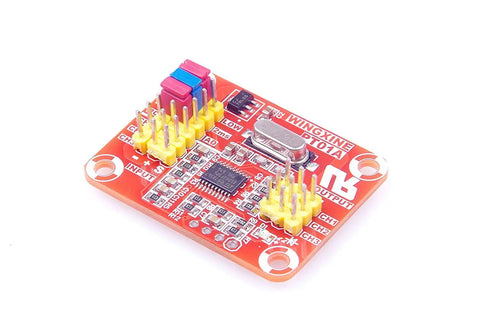

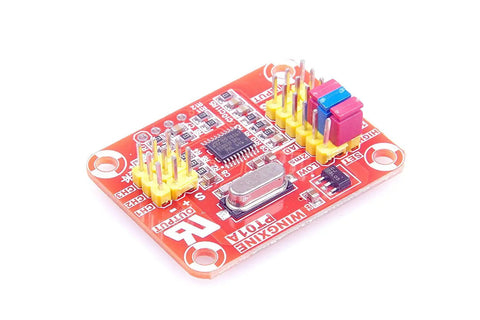

Multifunction Signal Converter Module PT01A Servo Signal To Analog Voltage And PWM Converter For Servo Testing And Calibration Handles PPM To PWM And Analog Voltage Outputs Great Gear For Hobbyists And Pro Builders

Single-unit servo signal converter for bench testing
✔️ Configurable DC5V/7-15V input and PPM, PWM, analog outputs

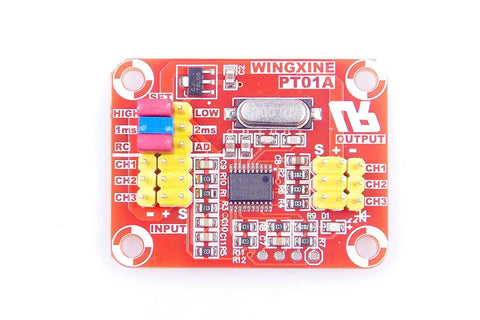

The PT01A Multifunction Signal Converter Module is a compact bench tool designed to translate servo control signals for testing and calibration. It handles conversions among analog voltage, PPM, and PWM signals, making it handy for hobbyists and pro builders working on RC systems, robotics, and measurement rigs.

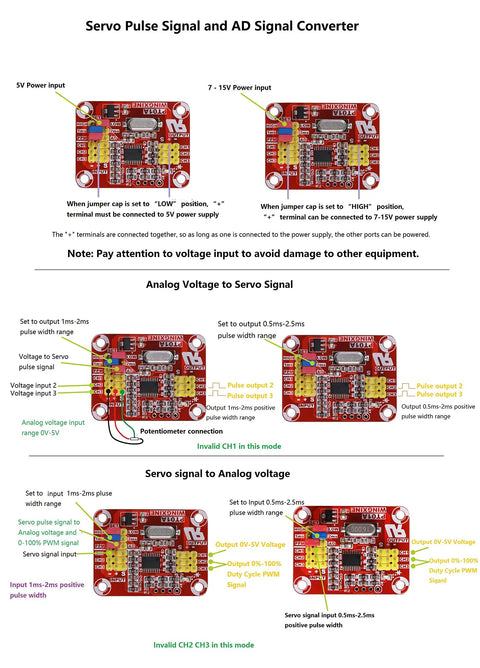

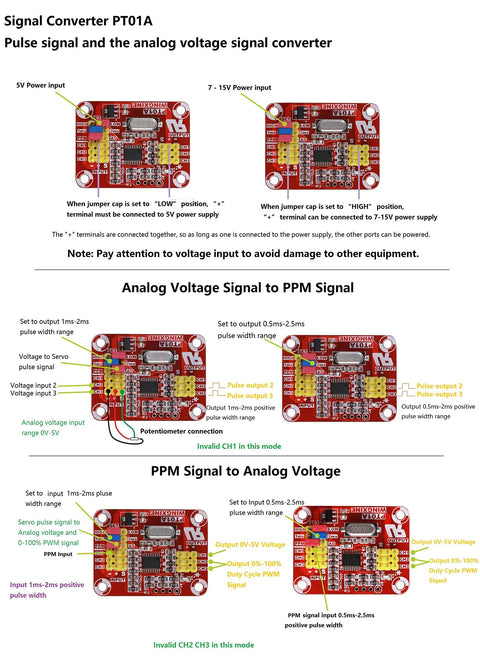

✅ Operating voltage options: DC5V (low jumper) or DC7-15V (high jumper)
✅ Input voltage limits: 4.5V-5.5V (low) or 6.0V-15V (high)
✅ Output current limit: 6.5A / 7.5A; current draw under 10mA
✅ Dimensions: 42x31x12 mm / 1.65x1.22x0.47 in (LxWxH)
✅ Weight: about 7 g; Pack: 1 piece
✅ Two functions disable when not in use; jumper cap selects mode
✅ Applications: servo calibration, potentiometer/joystick control, RC motor speed controllers

💡 What is a servo signal converter used for in hobby robotics?

A handy tool for testing and calibration across servo projects. - Converts signals between PPM, PWM, and analog voltage for bench tests - Handy for RC control tuning, motor speed controller calibration - Helps simulate receiver outputs and verify control logic before wiring
