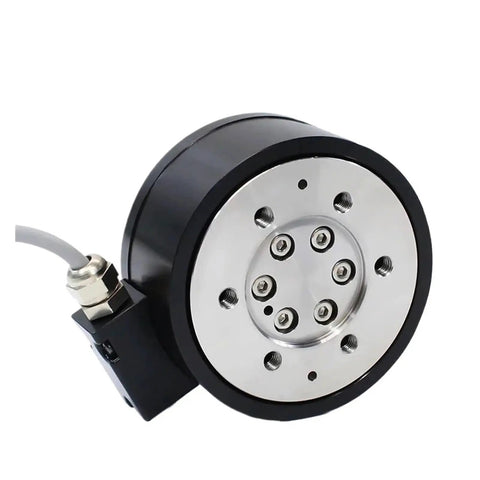

Multidimensional Load Cell 3 Axis Force Sensor Six Channel For Torque Measurement And Wrench Calibration Compact Rugged Design For Measuring Forward And Reverse Torque With High Accuracy And Real Time Data
✔️ Six-channel 3-axis load cell for torque, real-time data, single unit
Compact, rugged six-channel, three-axis load cell used to measure forward and reverse torque and convert torsion into real-time data for wrench calibration and motor testing.
✅ Capacity 2000N / 20N.m
✅ Sensitivity temp efficient ±0.01%F.S./10
✅ Rated Output 0.5-1.0mV/V
✅ Input resistance 350/700±20
✅ Non-Linearity ±0.3%F.S.
✅ Hysteresis 0.3%F.S.
✅ Repeatability ±0.3%F.S.
✅ Safe Overload 200%F.S.
✅ Coupling accuracy ±0.1%F.S.
✅ Insulation 5000MC
✅ Creep(30min) ±0.5%F.S./30min
✅ Operating Temp Range -20-60
✅ Zero Balance ±1%F.S.
✅ Temp Effect on Zero ±0.01%F.S./10
Model Number: DSDW-100
💡 What is a three-axis load cell used for in torque measurement and wrench calibration?
It's a handy device for measuring multi-axis forces and torque in real time, helping you verify wrench accuracy and performance in labs and on the shop floor.
- three-axis torque sensor for precise calibration in labs and shops - real-time data helps validate wrench accuracy and performance - compact rugged design fits tight spaces on test rigs - six-channel configuration supports complex torque profiles
