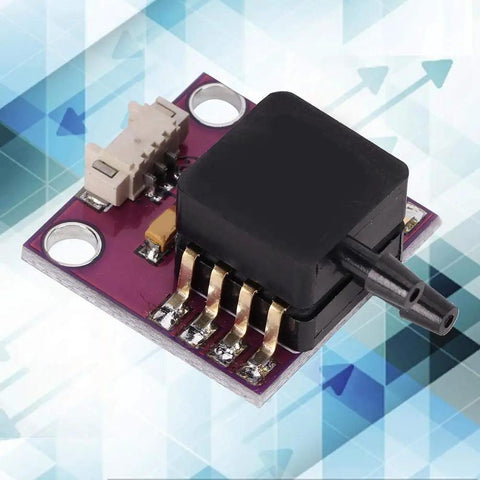

MPXV7002DP Pressure Sensor Board Transducer Breakout For Microcontroller Projects Positive And Negative Pressure Measurement With Analog Output And Easy A D Interface For Nerdy Builders
✔️ Analog 0.5-4.5V output, -0.3 to 0.3 psi range, SOP package
The MPXV7002DP is a compact piezoresistive pressure sensor breakout in SOP form, designed for microcontroller projects that require reading positive and negative pressures. It provides a stable analog output proportional to pressure and uses a 2.5V offset to suit most ADCs. Each port handles up to 7 kPa, enabling reliable sensing and vacuum measurement. The kit ships with one pressure sensor and one connecting wire.
✅ 7 kPa per port sensing range for pressure and vacuum paths✅ Analog output 0.5-4.5V proportional to pressure
✅ SOP form factor with simple A/D interface for microcontrollers
✅ 2.5V offset aids ADC readings and drift stability
💡 What is a pressure sensor breakout used for in microcontroller projects? This handy tool makes it easy to add pressure sensing to simple electronic projects. - Reading pressure with an ADC input on a microcontroller - Monitoring vacuum and positive pressure in small pneumatic setups - Quick integration with a single sensor and connector wire - Useful for weather, robotics, and lab experiments
