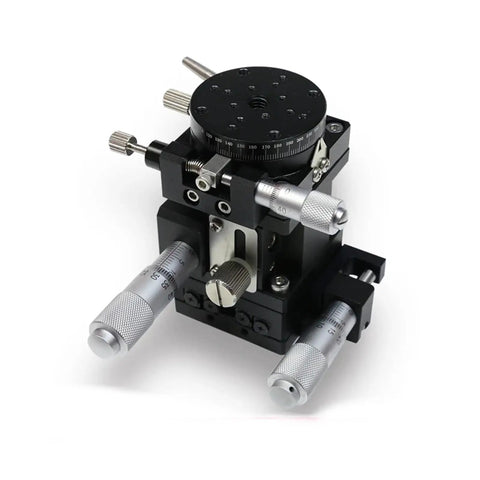

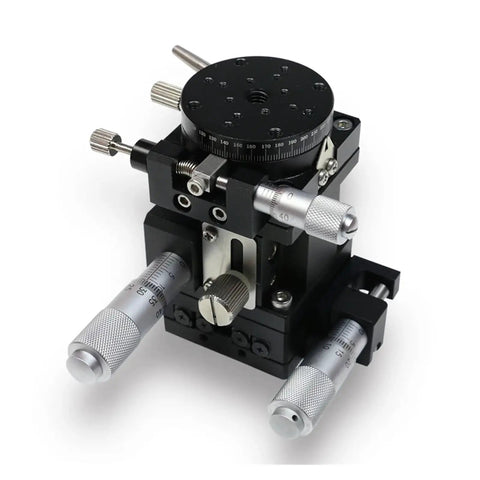

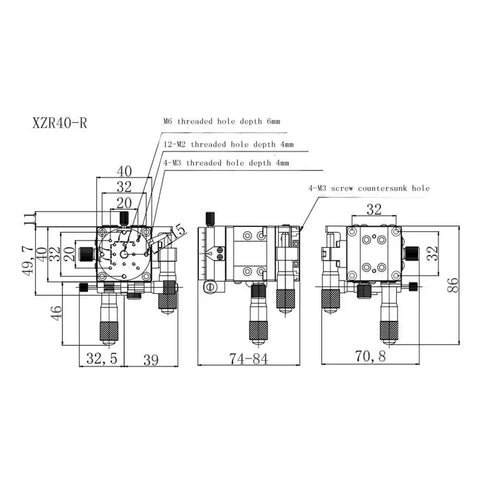

Motorized Rotary Positioning Stage XZR40-R With Micrometer Manual Displacement for Precise Optical Alignment, Pro Grade High Precision Translation Lift Rotary Table for Lab Metrology, CNC, and Automated Assembly
✔️ 3-axis travel: X ±6.5mm, Z 10mm, R rotation 360°
The XZR40-R motorized rotary stage is a precision alignment platform designed for optical benches, metrology labs, CNC setups, and automated assembly lines. It combines a worm gear drive with a V-type cross roller guide for smooth, repeatable motion and robust load carrying capability.
✅ Table size: 40mm x 40mm
✅ Rail type: V-type precision cross roller guide
✅ Movement: X-axis ±6.5mm, Z-axis 10mm
✅ Rotation: R-axis coarse 360°, fine ±5°
✅ Table thickness: 74-84mm
✅ Material: Aluminum alloy, black anodized surface
✅ Load: 8.8N (1kgf)
✅ Accuracy: 10 micron
✅ Straightness: 5 micron
✅ Weight: 0.6 kg
✅ Linear slide unit integration for smooth, backlash-free motion
💡 What is a motorized rotary stage used for in precision optical alignment and metrology?
In short, it’s handy for repeatable, fine-tuned positioning in optical work, metrology tasks, CNC alignment, and automated assembly lines.
- Precise rotation and translation for mounting optics, sensors, or micro components
- Supports flat, vertical, and inverted setups for flexible experiments
- Reduces manual adjustment errors and improves repeatability across runs
- Compact, rigid platform ideal for tight lab benches and automated systems
