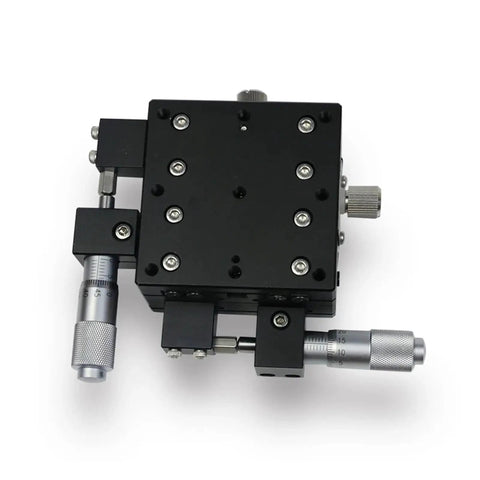

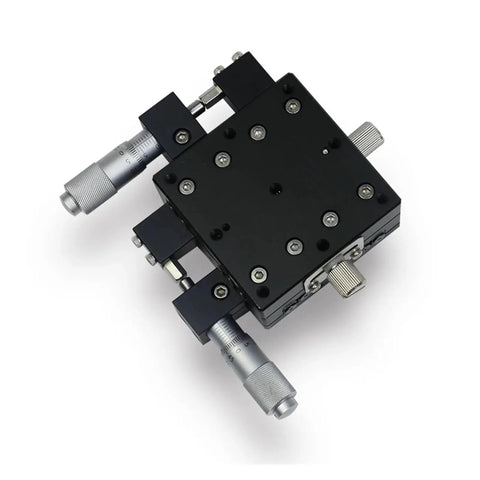

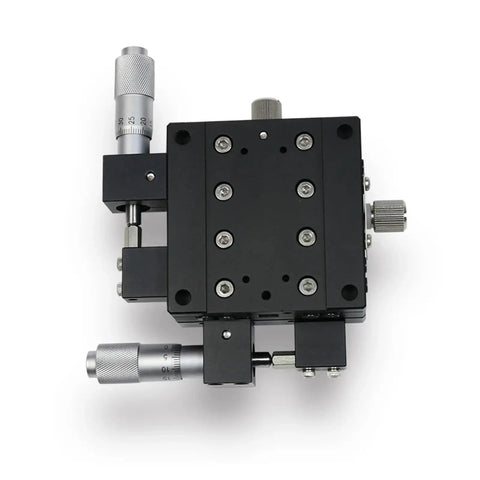

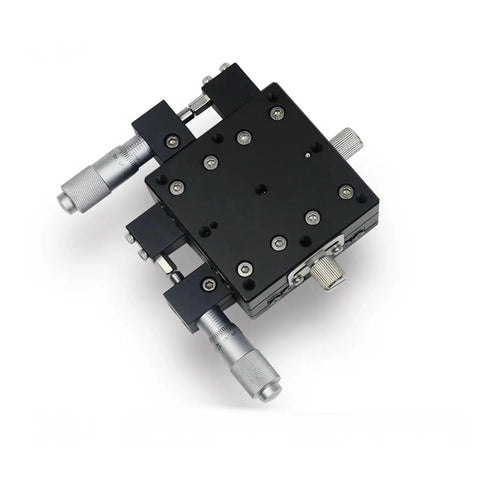

Motorized Rotary Positioning Stage For Fine Tuning XY60 L 30 Micro Slide Table 60 By 60 Mm XY Axis Pro Grade Precision 49N Load 10 Micron Accuracy Electric Rotary Platform With Precision Worm Gear Transmission

Meet the XY60-L-30 Motorized Rotary Positioning Stage, a compact, pro-grade micro-positioning platform engineered for ultrafine adjustment in optical, electronic, and scientific applications. Merging a 60 mm by 60 mm aluminum platform with a robust worm-gear transmission and precision cross-roller guidance, this stage delivers repeatable, smooth motion with minimal backlash across two axes and an integrated rotary capability for angular fine-tuning.

Designed for demanding setups, it combines rugged construction with refinement. The black anodized aluminum body provides excellent rigidity and corrosion resistance, while the V-type precision cross-roller guide minimizes play for stable, straight movements. The result is a stage that maintains high rotary accuracy and consistent performance even under load and over many cycles.

Key specifications at a glance:

• Table size: 60 mm × 60 mm
• Movement range: X-axis ±6.5 mm, Y-axis ±6.5 mm
• Table thickness: 30 mm
• Load capacity: 49 N (≈5 kgf)
• Accuracy: 10 μm
• Straightness: 5 μm
• Weight: 0.51 kg
• Drive: Micrometer-based fine adjustment with a 10 μm minimum reading
• Material/finish: Aluminum alloy with black anodized surface
• Bearing/guide: V-type precision cross-roller guide
• Special transmission: Precision worm gear transmission for high wear resistance and low backlash

This stage is engineered for reliability and long service life. The worm-gear transmission and friction-resistant materials work together to deliver smooth, repeatable motion even after many cycles. The combination of a high-precision shaft system and the cross-roller guide yields exceptional straightness and stability, making it ideal for tasks that demand micro-level repeatability.

What sets it apart

• Integrated rotary capability alongside precise XY positioning, enabling rapid switching between linear and angular adjustments without swapping hardware.
• Strict quality controls ensure key indicators meet rigorous performance criteria, giving you confidence in repeatable results for critical experiments and production steps.
• High load with compact form, a lightweight yet sturdy platform that supports precise fixtures, optics, probes, and small sensors without sacrificing maneuverability or speed.
• Two-axis linear displacement in a compact footprint, making it a versatile choice for benchtop setups and integrated systems alike.

Ideal applications:

• Optical alignment, laser experiments, and photonics research requiring fine angular and linear positioning
• Microscopy sample mounting and nanometer-to-micrometer adjustments
• Electronic assembly, PCB fiducial alignment, and MEMS/semiconductor prototyping
• Precision inspection, laser marking, and micro-machining setups

Practical tips:
- Mount fixtures securely to the 60 × 60 mm table; use the 30 mm thickness to apply stable clamping without inhibiting travel.

• Calibrate the micrometer readout regularly to maintain 10 μm resolution accuracy across both axes.
• Use the cross-roller guides to minimize drift during long-duration experiments or when changing orientations.
• When enabling rotary adjustments, verify alignment against your reference plane to maintain coordinate consistency.

Whether you’re aligning ultrafine optics, programming a precise micro-positioning sequence, or integrating a compact, reliable rotary stage into a larger automation system, the XY60-L-30 delivers the precision, stability, and versatility you need. It’s built for engineers and researchers who demand dependable performance in a compact, easy-to-integrate package.
