Motorized Linear Guide Table With 150mm Stroke Ball Screw CNC Stage For Nema 23 Stepper Motor Aluminum Rail System High Precision Linear Motion Platform For CNC Milling And Laser Engraving
✔️ 150mm stroke, ±0.02mm accuracy, 1 unit pack, 25 kg load

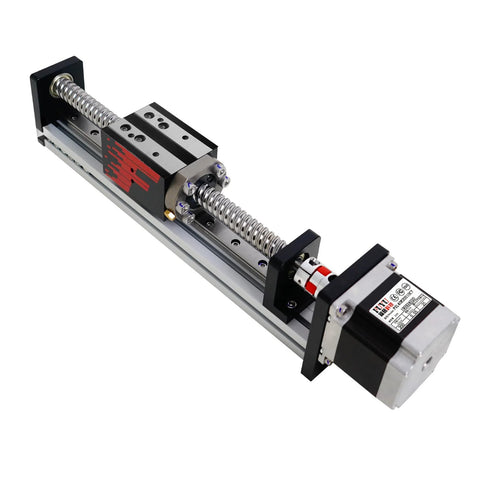

Compact motorized linear guide table with aluminum rail, running on a G1610 ballscrew, built for precise positioning in CNC, automation, dispensing, and robotic assembly. It supports multiple stroke lengths from 50 mm to 1000 mm and can be paired with NEMA 23 stepper or higher torque servo for fast, repeatable motion.
✅ Stroke options from 50 mm to 1000 mm for flexible CNC setups
✅ Accuracy up to ±0.02 mm with solid aluminum rail

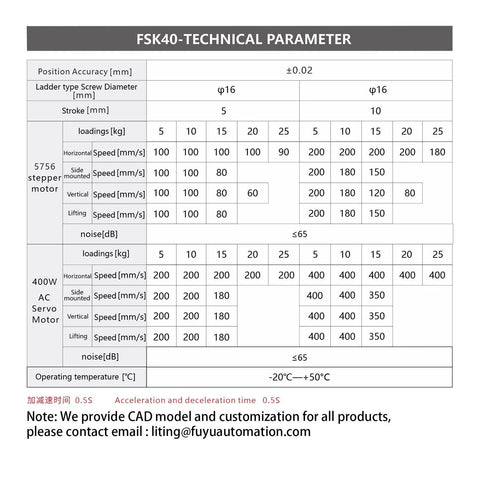

✅ Horizontal load up to 25 kg and vertical load up to 20 kg
✅ Max speed 255 mm/s no load; 180 mm/s max loaded (horizontal)

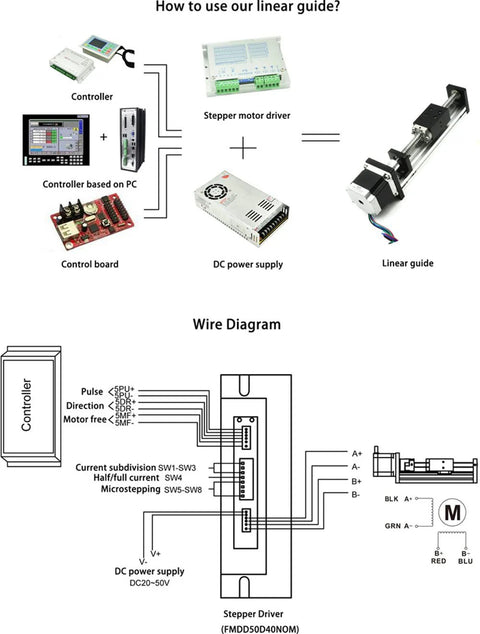

✅ Compatible with NEMA 23 stepper (5756) or upgrade to 400 W servo for faster motion
💡 What is a motorized linear guide stage used for in CNC and automation? This handy module gives precise, repeatable motion for tooling and handling. - Precision positioning for dispensing, cutting, welding, and inspection - Supports stroke lengths from 50 mm to 1000 mm for flexible setups - Works with NEMA 23 stepper or servo drives for strong control - Improves throughput with smooth, repeatable motion in automation
