Motorized CNC Linear Stage With Ball Screw And Linear Guide Module, Nema 23 Stepper Motor, 700mm Stroke, High Precision Linear Motion System For Milling And CNC Routers, Corrosion Resistant And Durable Construction
✔️ 700mm stroke, 20kg horizontal load, 1200 rpm NEMA23 motor

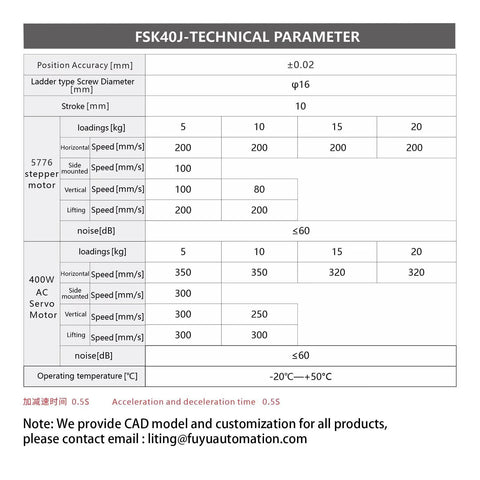

FSK40J motorized linear guide module pairs a compact rail with a robust G1610 ball screw, delivering a 700mm travel and ±0.02mm repeatability for precise CNC motion. Ideal for tight spaces, it supports upside-down mounting and easy installation with M5 screw holes.
✅ G1610 ball screw delivers smooth travel and precise positioning
✅ Repeat position accuracy ±0.02mm for reliable CNC moves
✅ Anti corrosion, rust resistant construction for long life
✅ Horizontal load capacity 20kg; full load speed 200mm/s
✅ Upside down installation supported; flip load up to 10kg
✅ Slider and base with M5 mounting holes for easy install
✅ NEMA23 (5776) stepper motor included; max speed 1200 rpm; noise under 65 dB
✅ Optional 400W servo motor upgrade available
💡 What is a motorized linear guide used for in CNC machines?
A handy overview of its role in automated motion and precise axis control.
- Precise, smooth motion for CNC axes with reliable load handling
- Integrated ball screw provides repeatable travel and accuracy
- Compact design fits tight spaces and simplifies mounting
- Compatible with stepper or servo drives for flexible power options
